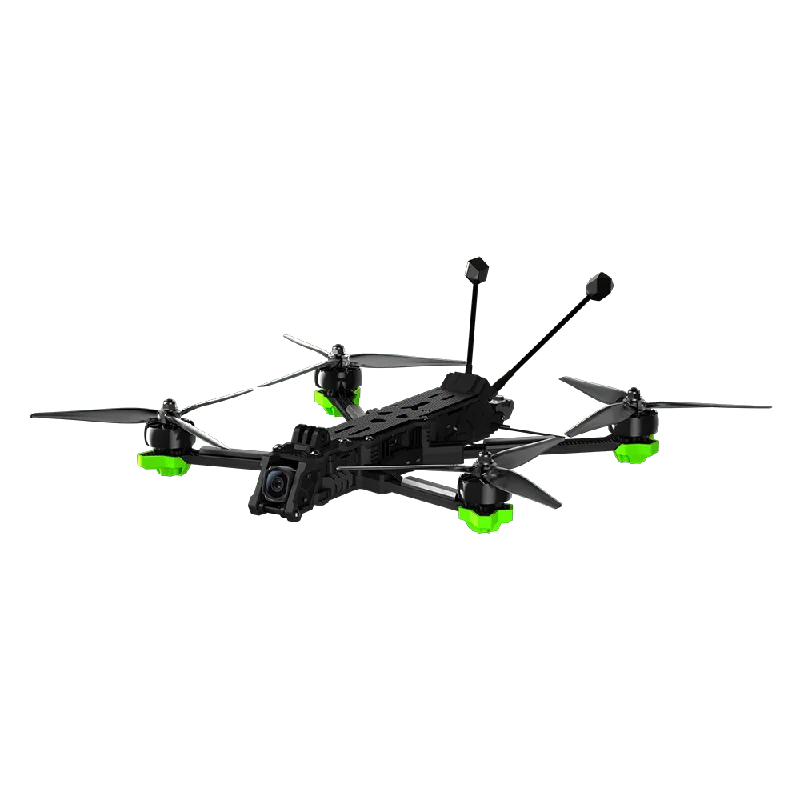

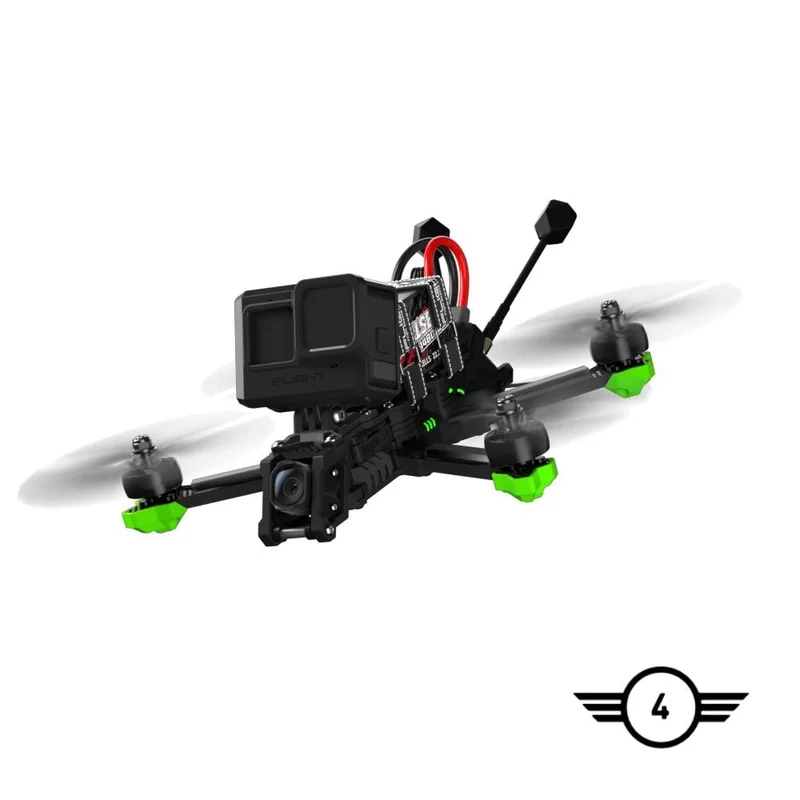

Nazgul XL10 V6 6S GPS ANALOG

Description

Highlights:

• Full 3K Carbon Fiber airframe
• Popular True-X configuration
• Big size XING2 3314 with extreme lift and flight performance
• GPS module pre-installed (BF GPS rescue or INAV GPS RTH feature available)

Specifications:

Product Name: XL10 V6 Analog 10 inch

FC: BLITZ F722 Flight Controller

ESC: BLITZ E55 4-IN-1 2-6S 55A ESC

Video Transmission: BLITZ Whoop 1.6W VTX/ BLITZ whoop 2.5W VTX

Frame diagonal motor distance: 420mm

Motor: XING2 3314 900KV motors

Prop: 10X4.5X3 propellers

Weight: 860g (Without Battery)

Dimensions (L×W×H)：297x297x35mm

Max Speed: 140km/h

Maximum Takeoff Altitude: 6000 m

Max Hover Time: Approx. 40 mins (with 6S2P 8000mAh no load)

Max Wind Speed Resistance: Level 7

Operating Temperature Range: -10° to 40° C (14° to 104° F)

Antennas: Single Antenna

GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Video Transmission (optional):

Product Name: BLITZ 1.6W VTX

Output Power: 0-25-400-800-1600mw

Input Volts: 12V

Working Current: ≤pit .
