Description
Next-Generation Stabilization Solution for Professional Gimbals
The iPower 3-Axis Gimbal Controller is a next-generation stabilization solution for professional UAV and handheld camera gimbals.
This upgraded 32-bit SimpleBGC version replaces the older 8-bit model, maintaining full compatibility while offering faster processing, smoother stabilization, and more precise control. Perfect for drone setups and handheld rigs that demand reliable, high-performance stabilization.
Key Features
Compact Design: 50×50 mm board size for flexible installation.
Standard Mounting: 45 mm hole spacing, 3 mm hole diameter.
Wide Power Input: Supports 3S–6S LiPo batteries.
High Current Output: Up to 1.5 A per motor.
5V Power Supply: Up to 1 A output for external accessories.
Full Compatibility: Works with all previous 8-bit SimpleBGC systems.
Professional Use: Ideal for drones, UAVs, and handheld gimbals.
GM4108 Gimbal Motor Specification
Model: GM4108H
Motor Out Diameter: Ф47±0.05mm
Configuration: 24N/22P
Motor Height: 22.7.3±0.2mm
Hollow Shaft(OD): Ф10-0.008/-0.012mm
Hollow Shaft(ID): 8+0.05/0mm
Wire Length: 265±3mm
Cable AWG: #24
Motor Weight: 124±0.5g
Wire plug: 2.5mm dupont connector
No-load current: 0.07±0.1A
No-load volts: 20V
No-load Rpm: 513~567 RPM
Load current: 1.5A
Load volts: 20V
Load torque(g): 1200-1800
Motor internal resistance: 11.1Ω±5%（Resistance varies with temperature）
High voltage test: DC500V 1mA@2sec
Rotor housing runout: ≤0.1mm
Steering (axle extension): Clockwise
High-low temperature test：
High temperature: Keep at 60℃ for 100 hours, and the motor can work normally after 24 hours at room temperature
Low temperature: Keep at -20℃ for 100 hours, and the motor can work normally after 24 hours at room temperature
Maximum power: ≤25W
Working current: 3-5S
Working temperature: -20~60℃;10~90%RH
Compatible Sliprings

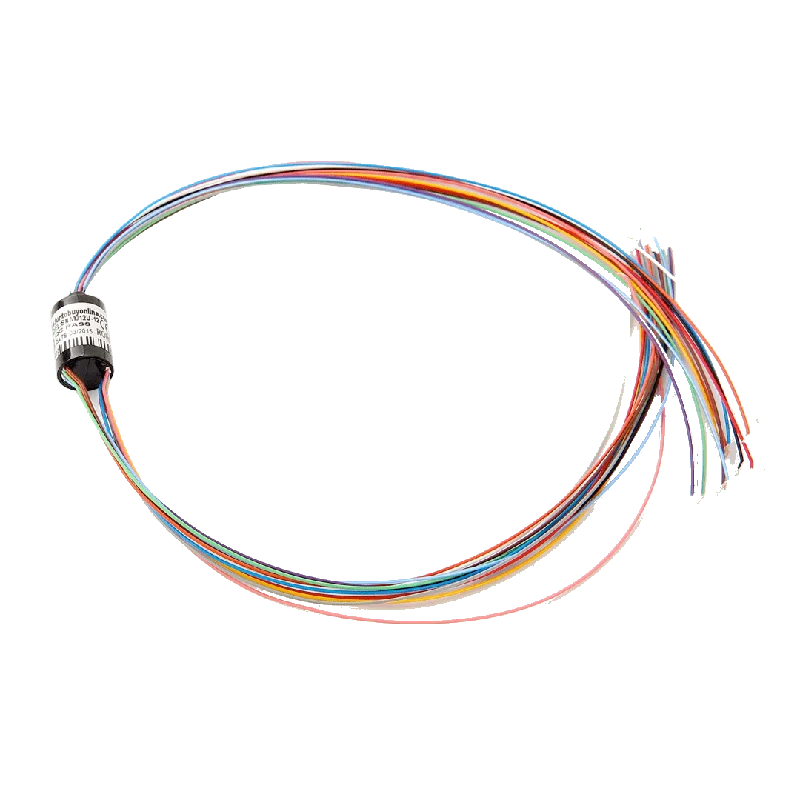

iPower Gimbal Motor Slipring – OD 7.9mm
Packing List
3 x GM4108H-120T Gimbal Motor
1 x Alexmos 32BIT BGC set without alum case
1 x Connecting cables set
