Description
Gimbal Controller for Professional 3-Axis Stabilization
This advanced gimbal controller is designed for building high-quality 3-axis camera stabilization systems, ideal for both UAV-mounted and handheld gimbals.
It represents the next step in the evolution of professional stabilization technology, replacing the previous 8-bit SimpleBGC controller while maintaining full backward compatibility.
With improved processing power, smoother motion algorithms, and new functionality, this controller delivers enhanced performance, faster response, and greater stability — perfect for professional filmmakers, drone operators, and custom gimbal builders.
Key Features
Simplified gimbal tuning – minimal calibration required
Up to 5× longer runtime compared to non-encoder systems
Dual IMUs for higher stabilization precision
Instant torque increase for demanding motion angles
Energy-efficient brushless design for stable and consistent performance
Specifications
Model: GM5208
Motor Out Diameter: Ф63±0.05mm
Configuration: 12N/14P
Motor Height: 22.7±0.2mm
Hollow Shaft(OD): Ф15-0.008/-0.012 mm
Hollow Shaft(ID): Ф12+0.05/0 mm
Wire Length: 610±3mm
Cable AWG: #24
Motor Weight: 195±0.5g
Wire plug: 2.5mm dupont connector
No-load current: 0.09±0.1 A
No-load volts: 20V
No-load Rpm: 456~504 RPM
Load current: 1A
Load volts: 20V
Load torque(g): 1800-2500
Motor internal resistance: 15.2Ω±5%（Resistance varies with temperature）
High voltage test: DC500V 10mA @1sec
Rotor housing runout: ≤0.1mm
Steering (axle extension): clockwise
High-low temperature test:
High temperature: Keep at 60℃ for 100 hours, and the motor can work normally after 24 hours at room temperature
Low temperature: Keep at -20℃ for 100 hours, and the motor can work normally after 24 hours at room temperature
Maximum power: ≤40W
Working Voltage: 3-5S
Working temperature: -20~60℃;10~90%RH
Compatible Sliprings
iPower Gimbal Motor Slipring – OD 7.9mm
iPower High Current Gimbal Metal Slipring – OD12.5mm

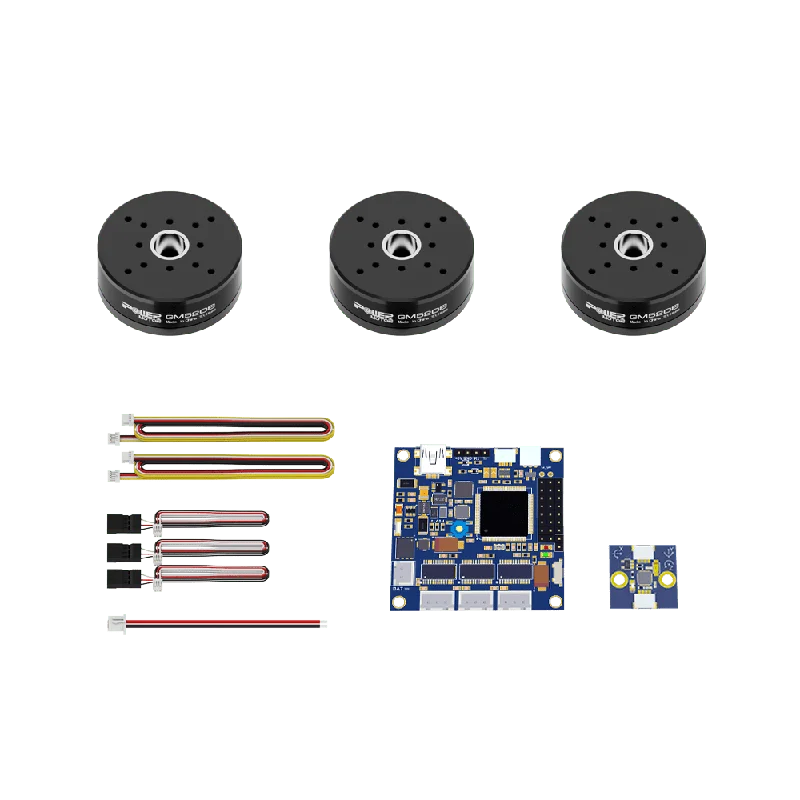

Packing List
3 x GM5208-12 Gimbal Motor
1 x Alexmos 32BIT BGC set without alum case
1 x Connecting cables set
