Description

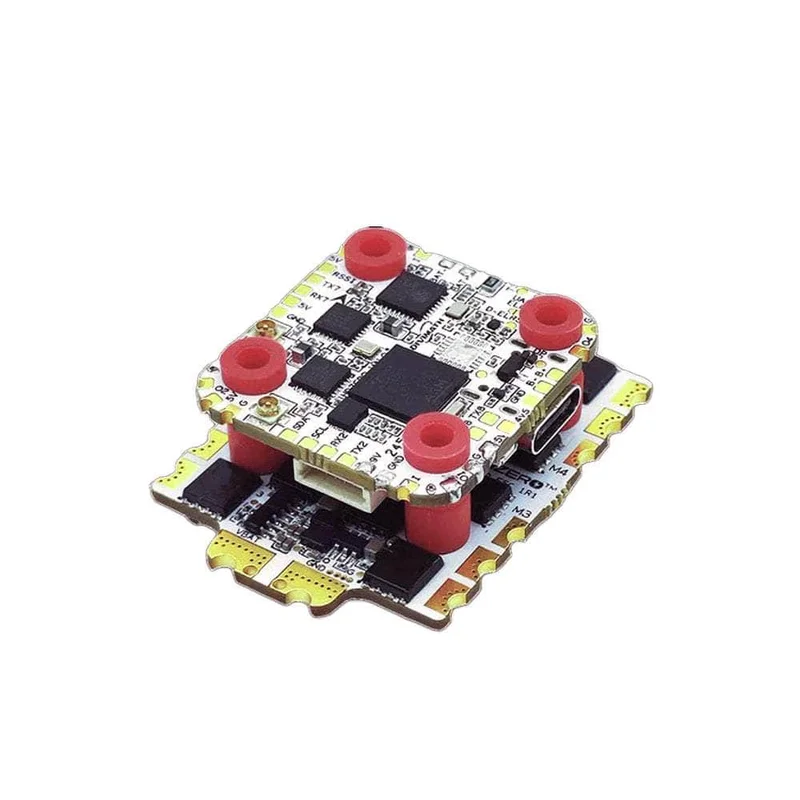

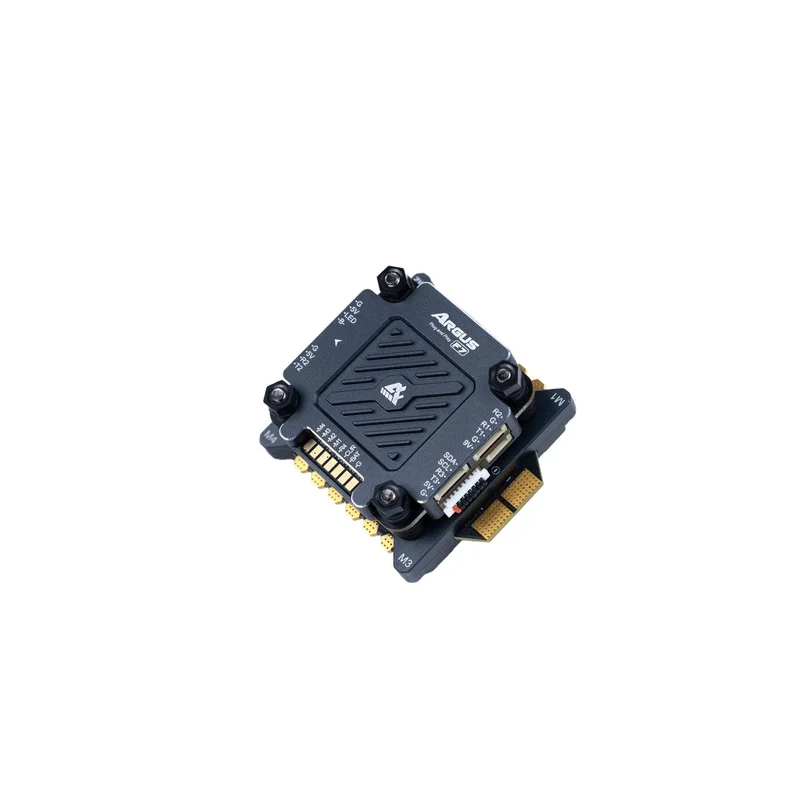

The Plug and Play Argus is AxisFlying electronic series that includes ESC, FC, and stack. Argus PRO series adopt a full aluminum cover wrapped that can get IP54 to protect PCB. Argus series is PCB electronic only. The FC is F722 which can support X8. If you want the best and for your build to look futuristic, this is the stack for you!
Check out all our 30×30 FC Stacks, and all our Axis Flying Products!
Specification
Argus PRO F722 Flight Controller
- MCU: STM32F722RET6
- Gyro: BMI270
- Barometer: Yes
- OSD: Yes
- BEC: 9V/2A, 5V/2A
- UART Ports: 6
- Black Box: 16MB onboard
- Number of supported motors: 8
- Firmware Name: AXISFLYINGF7
- Input Voltage: 3-6S LiPo
- Installation Holes: 30.5×30.5mm M3
32bit 4in1 ESC
- Continuous Current: 65A
- BLHeli_32 32bit
- Burst Current: 75A
- Size: 30.5×30.5mm M3
- BEC: No
- Weight: 32g
- Input Voltage: 3-6S LiPo (12-30V Max)
- ESC Target: BLHeli_32 (ST_G0_04)
- Current Proportion Value: Scale = 400
- PMW Frequency Range: 16-96khz
- Telemetry: Supported
- Ammeter: Supported
- BEC: No
- Installation Holes 30.5×30.5mm
- Size: 48.6×46.6×8.7mm
- Weight: 32g
Includes
- 1x AxisFlying Argus PRO F722 3-6S 30×30 Stack/Combo (F7 FC / 32bit 65A 4in1 ESC)
- 1x Wiring Set
