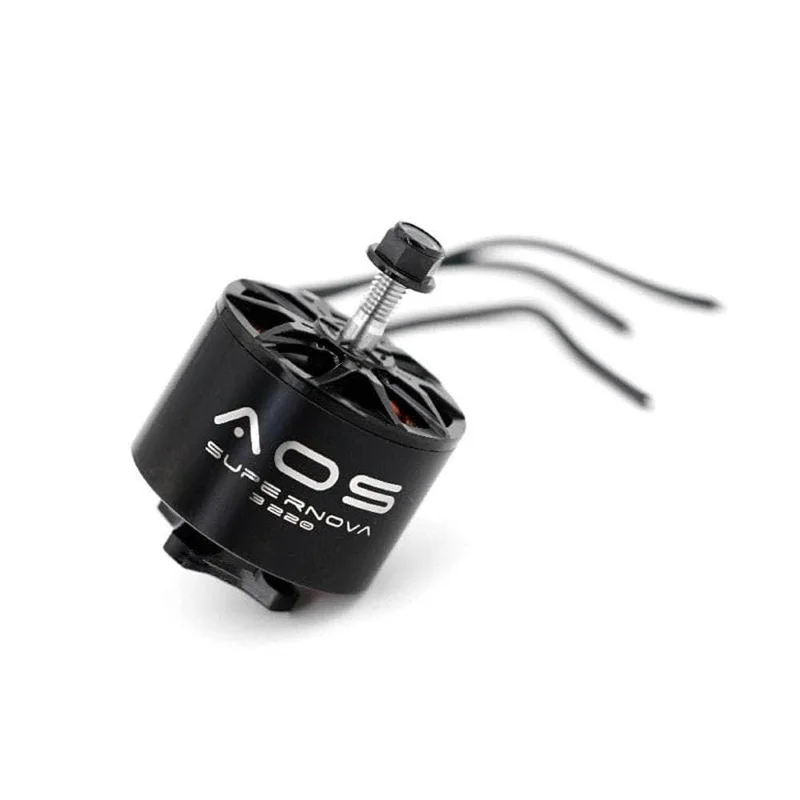

AOS RC Supernova 3220 Motor – 700KV/925KV

Description

The AOS Supernova 3220 are now here for high-speed FPV wings. Perfect for 7-10” props on 6S-8S voltage, it outperforms all other 3220 motors in thrust and response. Engineered through 22,000+ simulations and crafted by RCinPower, it meets the demands of serious pilots. The AOS Supernova 3220 allows you to send it with confidence and style!

Check out our vast brushless motors selection, and all our AOS RC Motors!

Features

• High-Speed Wing Optimization
• Customizable Throttle Control
• Unmatched Performance
• Precision Manufacturing
• Versatile Performance
• Cutting-Edge Design
• Proven Excellence

Specifications

700KV

• Motor Dimensions: 39.4mm x 36.25mm
• Max. Efficiency Current: (5-12A)>86%
• Max Continuous Power (15S): 2214
• Idle Current (10)@10V (A): 1.8
• No. of Cells (Lipo): 6-8S
• Configuration: 12N14P
• Stator Length: 20mm
• Stator Diameter: 32
• Max Current: 69.2A
• Weight: 170g
• KV: 700

925KV

• Motor Dimensions: 39.4mm x 36.25mm
• Max. Efficiency Current: (5-12A)>86%
• Max Continuous Power (15S): 1939
• Idle Current (10)@10V (A): 2.1
• No. of Cells (Lipo): 5-6S
• Configuration: 12N14P
• Stator Length: 20mm
• Max Current: 80.8A
• Stator Diameter: 5
• Weight: 170g
• KV: 925

Includes

• 1x AOS RC Supernova 3220 Motor (Choose Your KV)
• 1x Hardware Kit
