Description

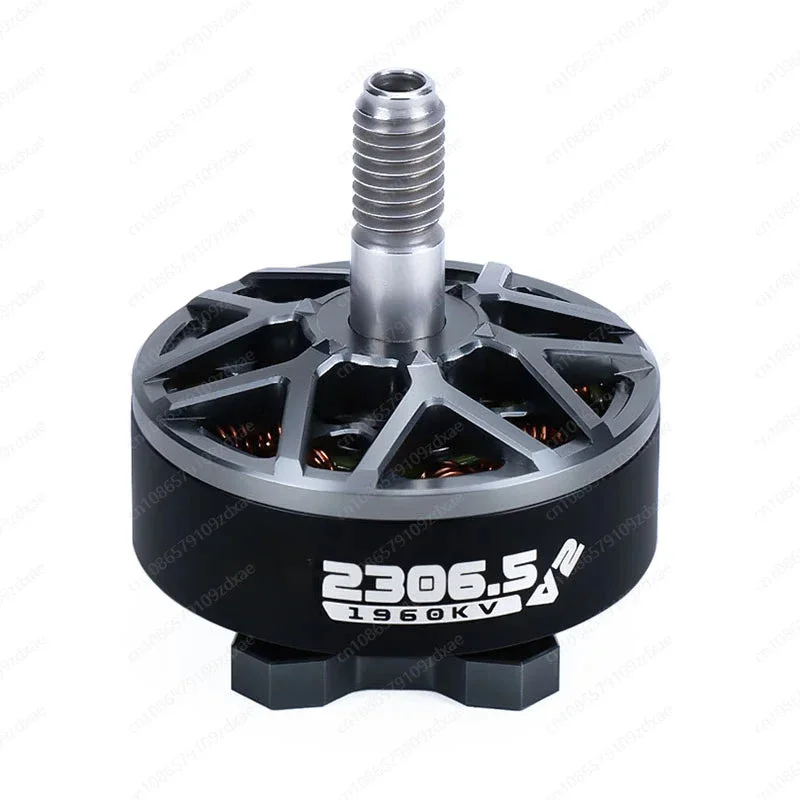

The AE 2306.5 V2 brushless motor series is engineered for high-performance 5-inch FPV racing and freestyle drones. With 1960KV and 1860KV variants. these motors deliver outstanding power-to-weight ratio. smooth throttle response. and efficient cooling. Weighing just 33.7g. they provide peak thrusts up to 1760g at 6S while maintaining controlled operating temperatures.
Whether you’re performing tight acrobatics or flying full-send across open fields. the AE 2306.5 V2 offers reliable output. smooth handling. and competition-level response.
Key Features
-
Available in 1960KV and 1860KV for different flight styles
-
High thrust up to 1760g on 6S with 51466 props
-
CNC-machined lightweight bell with cooling structure
-
Efficient 12N14P stator layout for low heat and high torque
-
Compatible with all major 5-inch FPV quad frames
Specifications
| Parameter | 1960KV | 1860KV |
|---|---|---|
| Stator Size | 23mm × 6.5mm | 23mm × 6.5mm |
| KV Rating | 1960KV | 1860KV |
| Shaft Diameter | 4mm | 4mm |
| Internal Resistance | 60.16mΩ | 70.62mΩ |
| Max Power (6S) | 1041.79W | 859.58W |
| Max Thrust | 1760g | 1670g |
| Max Current | 44.54A | 36.86A |
| Idle Current (10V) | 1.28A | 0.95A |
| Motor Dimensions | Φ27.9 × 32.7mm | Φ27.9 × 32.7mm |
| Lead Wires | 20AWG × 150mm | 20AWG × 150mm |
| Weight (w/ wires) | 33.7g | 33.45g |
| Configuration | 12N14P | 12N14P |
Test Performance Summary (1960KV)
Propeller: BB4943.5 / 51466 . All rights reserved.
