Description
Product

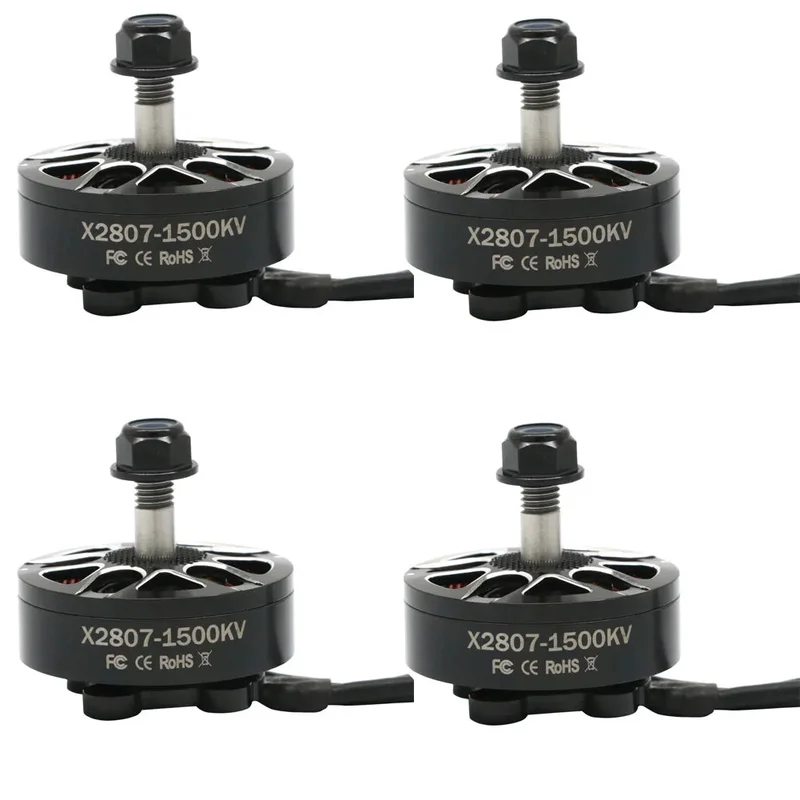

The Uangel X2807 series brushless motors are engineered for 6–7 inch FPV freestyle and long-range drone builds. Available in 1300KV. 1500KV. and 1700KV variants. these motors provide smooth power delivery. high thrust output. and reliable performance on 2S to 6S power setups. Perfect for DIY 7-inch LR7 frames. the X2807 combines efficiency with strength for your next long-range adventure.
Key Features
-
Stator size: 2807
-
Configuration: 12N14P
-
Shaft diameter: 4mm
-
Motor dimensions: 33.5mm × 17.5mm
-
Wire: 18AWG. 200mm
-
Propeller compatibility: 6–7 inch
-
Mounting: Standard FPV 16×16 / 19×19 pattern (not explicitly listed. assumed)
Specifications
| KV Rating | Voltage Support | Max Power | Idle Current (10V) | Peak Current | Resistance | Weight (no wire) |
|---|---|---|---|---|---|---|
| 1300KV | 2S–6S | 1400W | 1.0A | 55A | 60mΩ | 48.6g |
| 1500KV | 3S–5S | 1300W | 1.2A | 63A | 55mΩ | 48.6g |
| 1700KV | 3S–4S | 900W | 1.9A | 55A | 45mΩ | 47.9g |
Applications
-
1300KV: Ideal for 7-inch long-range builds on 6S
-
1500KV: Best suited for freestyle or long-range 6S cruising
-
1700KV: High responsiveness for 4S lightweight builds or mid-power setups
Package Includes
-
4 × Uangel X2807 Brushless Motors (1300KV / 1500KV / 1700KV. based on selection)
