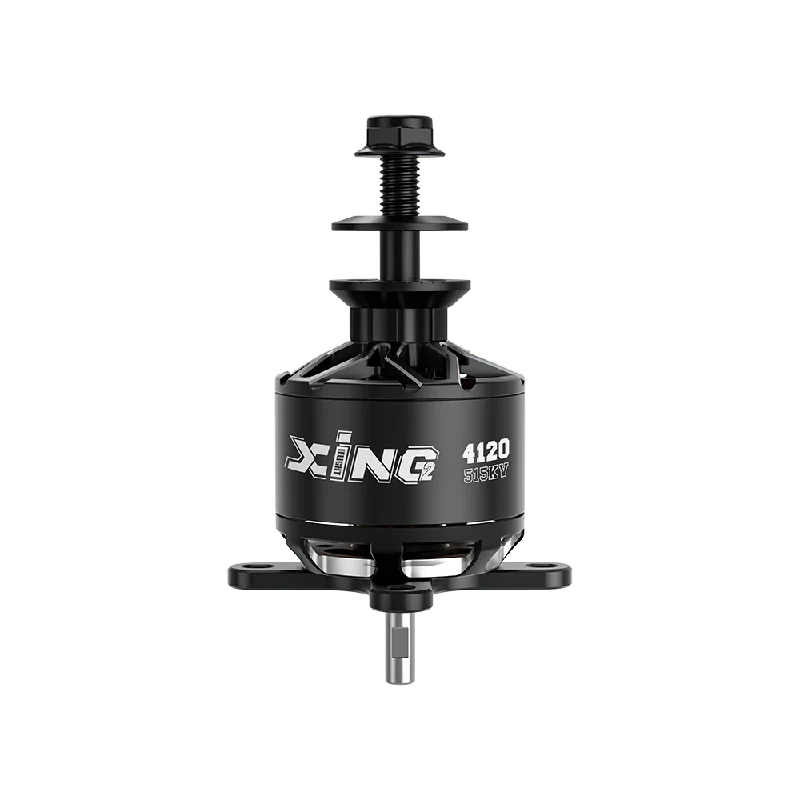

XING2 4120 515KV Wing Motor

Description

Our high-quality XING2 4120 Wing Motor is designed specifically for fixed-wing drone enthusiasts. Tailored to meet the needs of passionate model aviation hobbyists, this motor provides reliable and efficient power for their drones.

Specifications

Model: Xing2 4120

KV: 515KV

Weight(included wire): 300g

Dimension: φ49.5*71.5mm

Interphase Resistance: 14.36mΩ

Input Volts: 24V

Peak Current: 127.76A

Max Watt: 2950W

Mounting Holes: 30*30mm φ4mm

Rotor Specifications: Segmented Bell

Shaft Diameter: 6mm

Shaft Protruding Length: 23.5mm

Lead: 90mm/4.0 Gold Plug

Magnet: 45SH

Configuration: 12N14P

Bearing Type: NSK/NMB

Bearing Specification: φ12xφ6*4 2PC/φ15xφ6*5 1PC

Winding: Multi-strand copper winding

Packing List

1 x Xing2 4120 515KV motor

1 x Prop adapter

1 x prop washer

1 x Locknut

4 x M4 Hexagon socket screws

4 x M*14 Cup head hexagon socket screws

1 x Aluminum Washer

3 x Gold-plated female connector

3 x Heat shrink tube

1 x Cross style motor mount
