Description

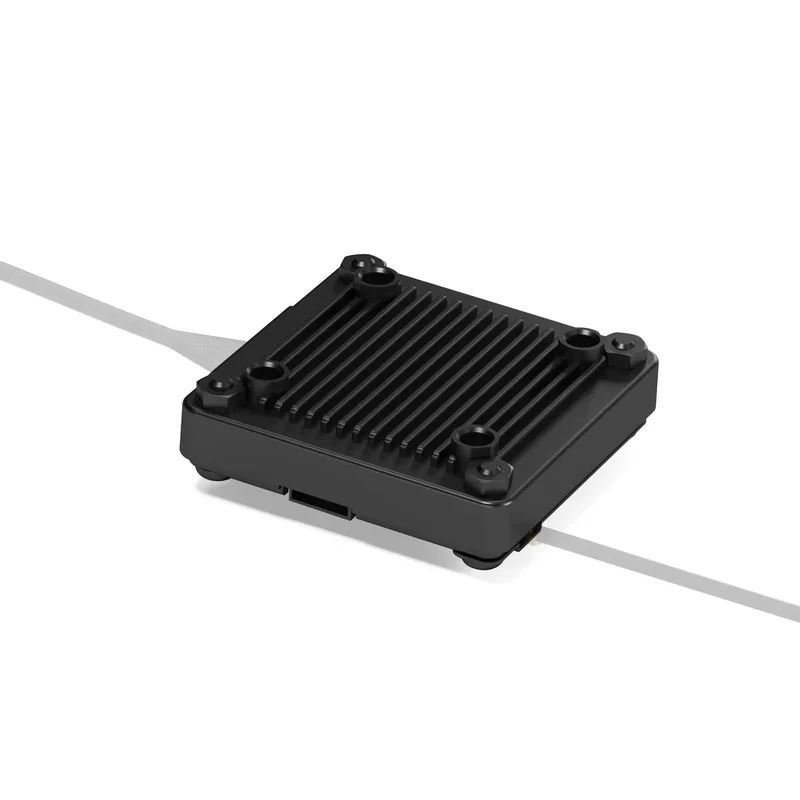

Bullet Point for Walksnail Avatar HD Mini VTX V3
- Walksnail Avatar HD Nano Kit V3 is suitable for more drones. with 3.1-13V voltage input and 500mw power output. you’ll be able to fly various kinds of drones with amazing video quality and range.
- The Avatar vtx comes with 32g built-in storage. it can record 1080p HD and interference-free flight footages without adding an extra SD card and an action camera. reducing the overall weight of the drones and extending the flight time. allowing you to experience a more comfortable flight while recording 1080 HD videos.
Note：USB Cable needs to be purchased separately
Specification |
|
| VTX | |
| Model | Avatar HD Mini VTX V3 |
| Communication Frequency | 5.725-5.850GHz |
| Transmitter Power (EIRP) | FCC:<27dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm |
| I/O Interface | JST1.0*4(Power in)JST0.8*4(USB) |
| Mounting Holes | 25.5*25.5mm(M2 hole);20*20mm(M3 hole) |
| Dimensions | 31.5*31.5*9.4mm |
| Storage | 32G |
| Recording | 1080p/720p |
| Weight | 13.4g |
| Operating Temperature | -20-40℃ |
| Channels | 8 |
| Wide Power Input | 3.1V-13V |
| Supported FC System | Betaflight; Inav; Fettec; Kiss; ArduPliot |
| OSD | Canvas mode |
| Latency | Average latency 22ms |
| Antenna | 1(IPEX) |
