Description
Due to this item’s size or weight, it may not available for free shipping and may be shipped via ground.

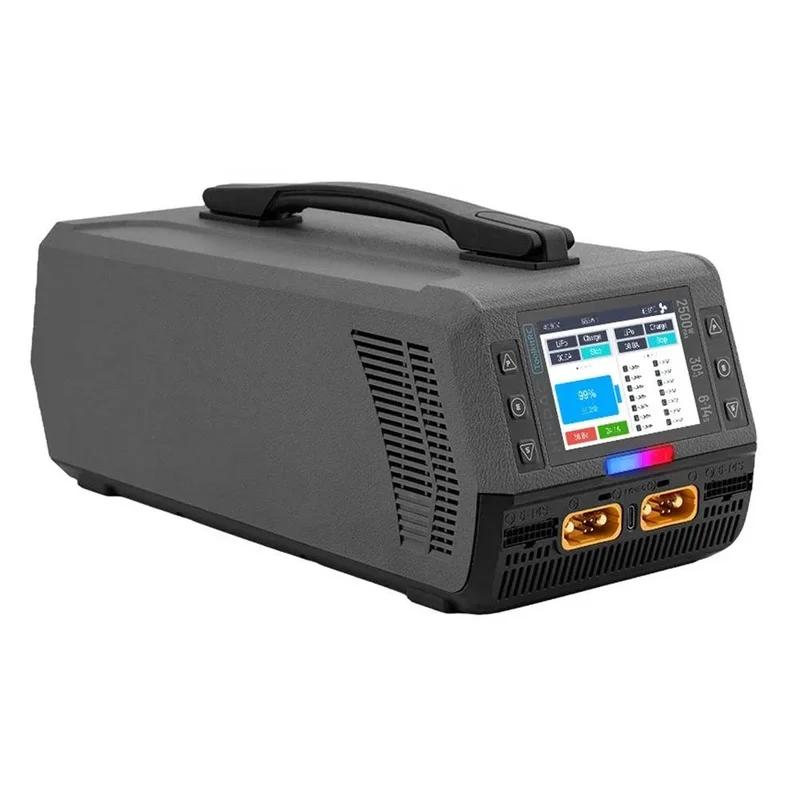

The ToolkitRC M14DAC is a high-performance dual-channel smart charger built for serious RC and drone enthusiasts who need fast, efficient, and flexible battery management. Featuring intelligent power distribution and synchronized charging capability, it can handle multiple high-capacity battery packs with ease. With robust protection systems and compact portability, the M14DAC delivers reliable, high-output charging in a professional-grade package.
Check out our other Battery Chargers and Accessories, and all our ToolkitRC products!
Features
- Powerful dual output with smart power distribution.
- Equipped with the AS150U battery interface to support DroneCAN smart battery communication.
- Smart 3.5 inch IPS LCD UI.
- 65W super flash charger.
- Compact size, with ergonomic handle.
- Dynamic light strip, real-time indication of charging status.
- Comprehensive security protections.
- Multi-language user interface.
- 100-240V wide voltage input, adaptable to global voltage standards.
Specifications
- Product size: 314.7×153.9×145.6mm
- Product weight: 3100g
- Display: 3.5″ IPS RGB 480×320px LCD
- Input voltage:
- AC 220.0-240.0V@MAX 2600W
- AC 100.0-120.0V@MAX 1300W
- Battery type: LiPo LiHV@6-14S
- Charging power:
- 1.0-30.0A@1250W×2 AC 220V
- 1.0-30.0A@600W×2 AC 110V
- 1.0-50.0A@2500W SYNC AC 220V
- 1.0-50.0A@1200W SYNC AC 110V
- Discharging power: 1.0-5.0A@60W×2
- Balance current: MAX2000mA@2-14S
- Type C output: MAX 65W@MAX 20V
- Internal resistance: 1mΩ-9.9Ω@6-14S
- Output connector: 2×AS150U male port, 1×Type C
IMPORTANT NOTES
- This charger uses the US input power option
Links
- User Manual
- Firmware Download
Includes
- 1x M14DAC Charger
- 1x AC Input Cable
- 1x USB Cable
- 1x 120Ω Resistor
- 1x Signal Cable
- 2x Balance Adapter
- 1x Quick Manual
- 1x Screen Protector
