Description

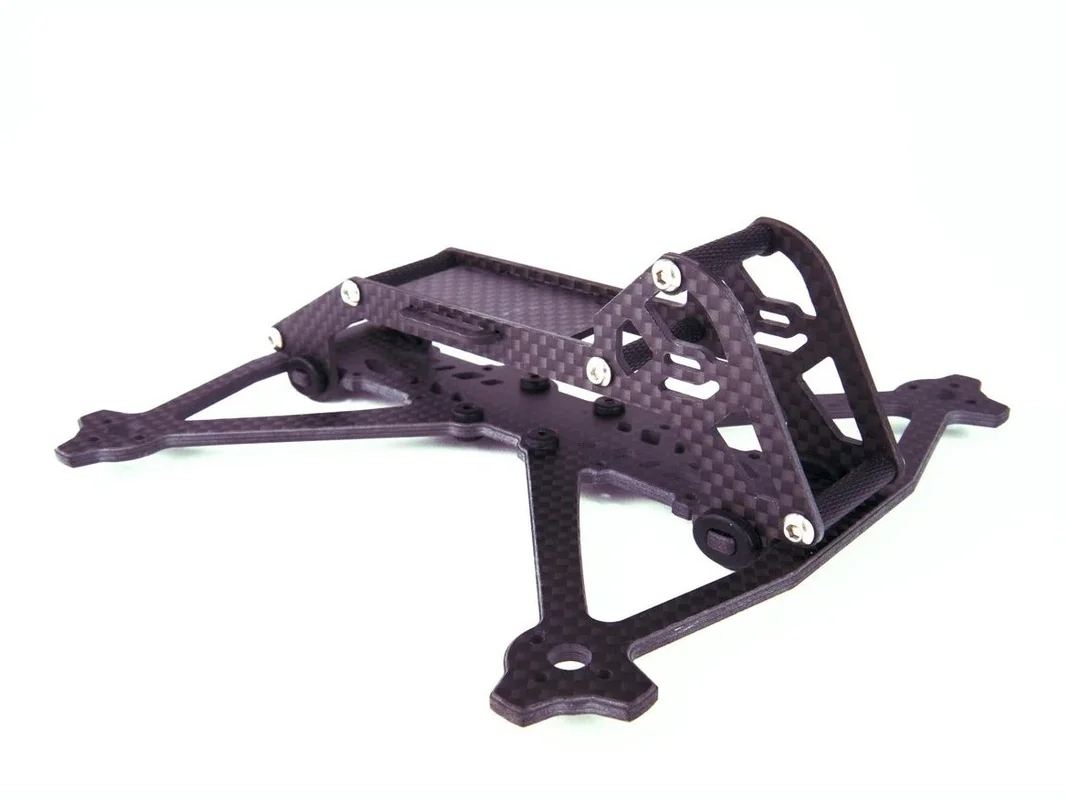

Ummagawd created a miniquad that doesn’t intimidate newcomers, and doesn’t disappoint seasoned FPV pilots. A balance of size, budget and fun-factor, that encourages anyone to create awesome HD FPV videos, without risking expensive equipment, breaking laws, or scaring spectators.
Design Goals:
- Deliver an HD freestyle quad for less than the price of a gopro session 5 (at the time $299)
- A 3” quad that feels and flies like a 5”
- Uses the runcam split mini, but mitigates the jello issues that the split is prone to
- all in a package that is fairly durable and not intimidating for the pilot or spectators
Specifications:
- Unibody Main plate = 3mm bi-axial Toray Carbon Fiber
- Side plates (w/adjustable FPV cam placement) = 2mm bi-axial Toray Carbon Fiber
- Battery plate (w/optional top mount FC holes) = 1.5mm bi-axial Toray Carbon Fiber
- Hardware = Stainless Steel
- Frame Dampeners = Custom Poly-urethane
- Motor to Motor (diagonal) = 163mm
- Motor to Motor (front to back/side to side) = 115mm
- Overall Frame size = 141x141mm
- Frame height = 55.5mm
- Dry Frame Weight = 54g
- Motor bolt pattern = 12x12mm
- Motor c-clip hole = 6mm
Includes:
1x Frame Hardware set
1x Camera Hardware set
1x Camera Board Hardware set
1x FC/ESC Stack Hardware set
1x FC grommets set
1x Bushings set
1x Battery Pad
2x Side Plates
1x Battery Plate with velcro strap
1x Base Plate
Recommended Motors:
The Hypetrain Brat 14078 4140kv motors were designed specifically for this frame. Highly recommended
Join the commuinity
Download Manual
Reviews
There are no reviews yet.
