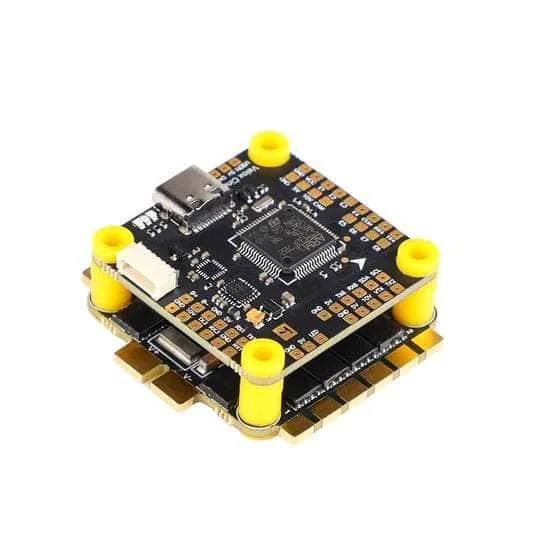

T-Motor F7 HD & F55A Pro II 3-6S 30×30 Stack/Combo (F7 HD FC / 32Bit 55A 4in1 ESC)

Description

The T-Motor F7 & F55A Stack now comes in a version meant specifically for the DJI Digital FPV System! Including a plug for your Air Unit and a 10V 2A BEC to power it.

Check out all our 30×30 Flight Controllers, all our DJI compatible gear, and all our T-Motor products!

Specifications

FC

• Input Voltage: 3-6S
• Gyro: BMI270
• Master chip: STM32F722RET6
• Flash: 16MB
• BEC: 5V 2A, 10V 2A
• Mounting hole: 30.5×30.5mm
• Weight: 8.4g
• Size: 37x37mm
• Firmware: TMOTOR F7(Betaflight)

ESC

• Continuous current: 4x55A
• BLHeli_32 32bit
• Burst current: 4x75A
• BEC Output: 10V @2.0A
• Size: 45x41x7.3mm
• Weight: 17.3g (Including Heatsink)
• Support DSHOT150/300/600/1200

Includes

• 1x T-Motor F7 HD 30×30 Flight Controller for DJI
• 1 x F55A Pro II 4 in 1 Brushless ESC

Wiring Diagram
