Description

T-Motor F411+V45A LITE STACK SPECIFICATIONS

Brand Name: T-MOTOR

Origin: Mainland China

Material: Metal

Recommend Age: 14+y

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Remote Control Peripherals/Devices: Battery

FC support 20×20 mm and 30.5×30.5 mm mounting holes . mounting holes can be removed to 2OX2O mm as required)

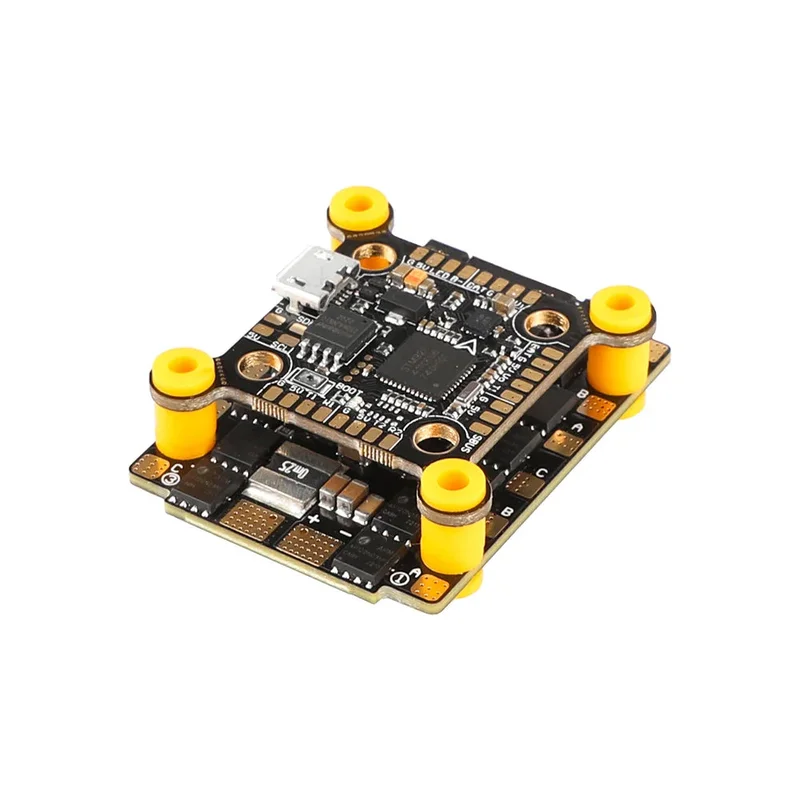

Introducing the F411+V45A Lite Stack. featuring a lightweight 45A 4-in-1 ESC that supports voltage inputs from 2S to 6S. Compatible with Velox 2207/2306 motors.

The FC Velox F411 Lite software requires loading the serial port configuration file for receiver. analog VTX. and GPS. Specifically. two hardware serial ports are needed. one of which can be used to open a software serial port.

The ESC features double-sided large-pitch pads. making it ideal for soldering both front and back components.

Accessories included: power cable. XL quality control pass card. stickers (2). 86 silicone shock-absorbing washers (8).

Main Control Board: STM32F411. Input Voltage Range: 3-6 cells. Gyro Sensor: BM270. Current Rating: 4x45A. Black Box Memory: 8MB. On-Screen Display (OSD): AT7456. Amperage Meter Resolution: 200Nip. Battery Eliminator Circuit (BEC): 5V. 2A. ESC Software: BLS. Weight: 13g. Mounting Hole Spacing: 30mm.
