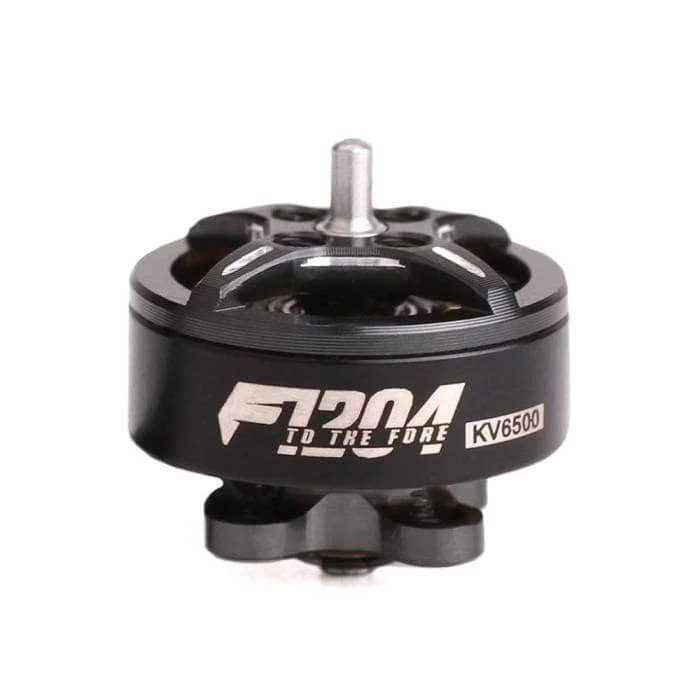

T-Motor F1204 5000Kv Motor

Description

The F1204 motors from T-Motor are ultralight motors that are specially made for toothpicks and whoops! The F1204 motor comes with a 1.5mm shaft to fit more props and features high efficiency, better cooling, and fast response. Suitable for 2.5-3″ builds!

Two Kv’s to choose from 5000Kv, and 6500Kv

Check out our other motors, and all our T-Motor products!

Specifications

Kv: 5000Kv

• Motor Dimensions: Φ15.5×15.6mm
• Lead: 24AWG 100mm
• Shaft Diameter: 1.5mm
• Idle Current: 0.7A
• Max. Power (the 60s): 72W
• Weight (Excl. Cable): 6.1g
• Internal Resistance: 240mΩ
• Configuration: 9N12P
• Rated Voltage (Lipo): 2-3S
• Peak Current (60s): 6A

Includes

• 1 x T-Motor F1204 5000Kv Motor
• 1 x Set screws
