Description

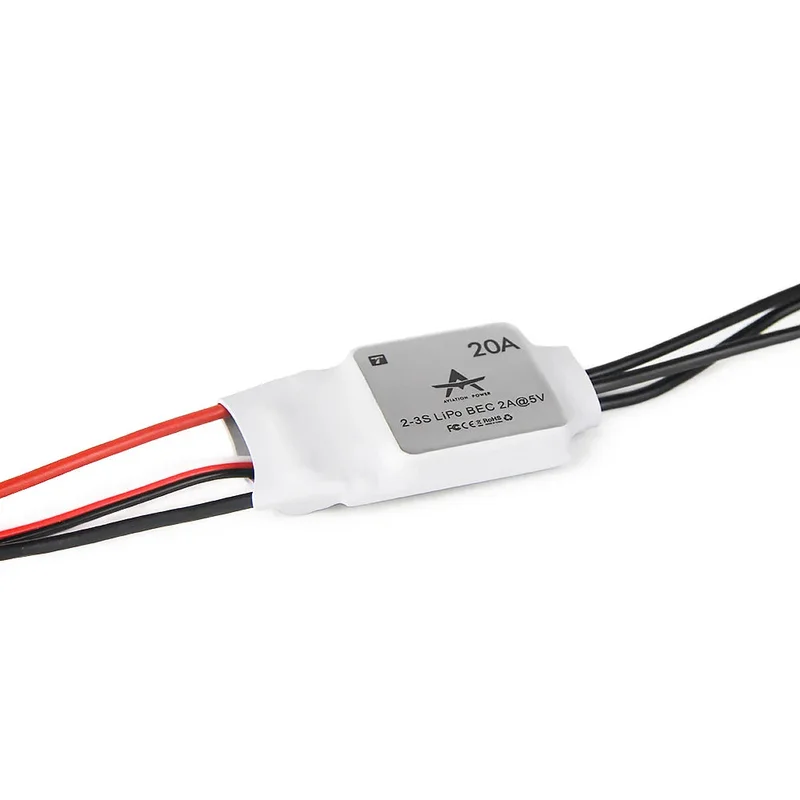

T-MOTOR AT series ESC SPECIFICATIONS

Brand Name: T-MOTOR

Origin: Mainland China

Material: Metal

Recommend Age: 14+y

RC Parts & Accs: Motors

For Vehicle Type: Helicopters

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: esc

Tool Supplies: Battery

Model Number: AT 55A

Four-wheel Drive Attributes: Motors

Wheelbase: Screws

series ESC adopt a dedicated fixed-wing core algorithm program.optimize the software structure to make motor control with high proficiency . original imported components. with ingenious PCB layout: And owing high quality. stability. and cost-effective.

The AT series ESC features a stable and high-efficiency Built-In Electronic Controller (BEC) module. ensuring safe and reliable operation in various power supply environments.

Equipped with hardware filtering and synchronized continuous current functionality. this ESC provides faster and more reliable throttle control. Additionally. it features multiple protection mechanisms. including abnormal voltage detection. thermal shutdown prevention. battery low-voltage warning. and throttle signal loss recovery.

Multiple programmable parameters allow for easy configuration to suit various applications and environments. Additionally. support for LED programming cards simplifies the setup process.

AT(Fixed Series) ESC manual DISCLAIMER Under strong power system;wrong operation for RC model will bring danger . AII devices are original made; ensuring that the ESC has high quality and high reliability .

When using NiMH batteries. the low. medium. and high cutoff voltages are set at 9%. 50%. and 65% of the startup voltage. respectively. A setting of 0% disables the low cutoff function.

It’s essential to calibrate the throttle range on servos. servometers. and Electronic Speed Controllers (ESCs) before flying. To do so. emit a ‘beep’ tone through the transmitter. pack the signal to the ESC. and wait for two seconds before proceeding.

If the motor does not startup within 2 seconds. the ESC will automatically shut down power supply. Additionally. if the throttle signal is lost for one second. the system will continue to monitor for another 2 seconds before completely cutting off output power.

After powering on. no motor activity occurs and an error beep sounds. The throttle direction for channel

The motor should initially beep ‘B-B-‘ followed by a sequence of numbers (‘56712’) emitted 5 seconds later. indicating that it has entered the ESC programming mode.

The ‘Select Parameter Items’ menu has six adjustable parameters. As you navigate through this menu. the motor will produce distinct beeping sounds in a circular pattern. Once you’ve reached the desired setting for an item. move the throttle stick to its highest position. Upon confirmation. you’ll hear the motor emit a beep sequence of ‘I5-1-5’ to indicate that the value has been successfully saved.

The ESC beeps to notify you of the number of LiPo cells connected. When using multiple batteries. ensure they’re properly recognized by plugging them in again. Additionally. please note that the power supply should be turned off if the battery level is low.
