Description
SUNNYSKY EOLO 40A Pro ESC SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Recommend Age: 12+y.18+
Origin: Mainland China
Material: Composite Material

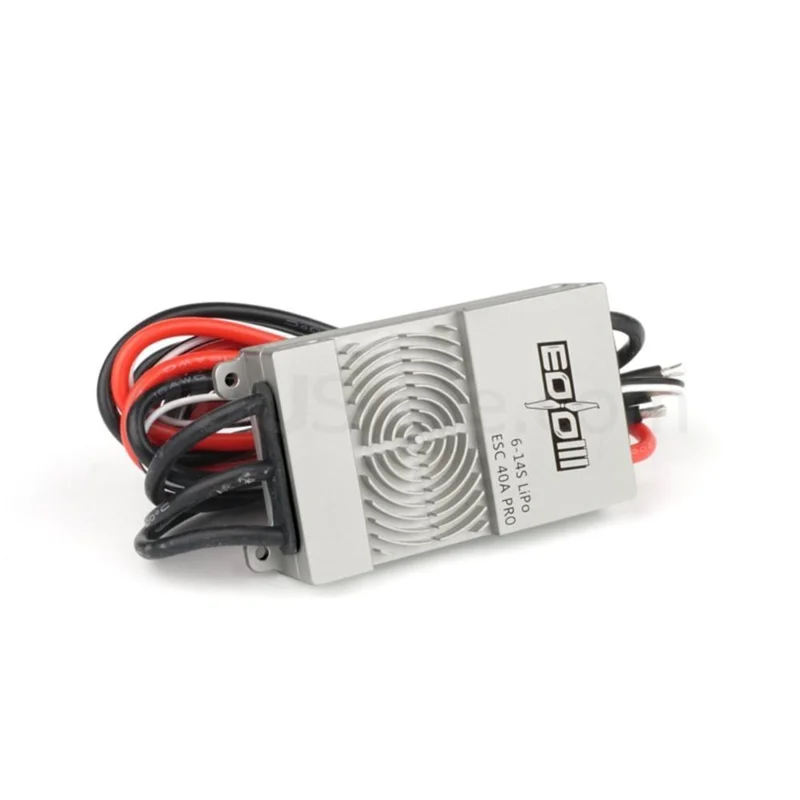

SUNNYSKY EOLO 40A Pro ESC 6-14S IP67 supports motor including but not limited to 7205 7206 7210 8108 8110 8112 8114 for RC drone
E EOLO ESC Extremely light And Explosive power New constant-speed algorithm | Outstanding constant- speed performance Low noise Fast response | Energy recovery | Low temperature Learn More Lipo 76-145 ” 4OA PRO ESC
The SUNNYSKY Eolo 40A Pro ESC features wide compatibility. ensuring reliable and stable performance even in harsh environments. Its applications include surveillance. search and rescue. disaster response. construction. aerial photography. powerline security. surveying. inspection. monitoring. and more.
The Eolo ESC features a waterproof coating on the PCB (Printed Circuit Board) and an anti-corrosion housing with an IP67 protection level. which provides effective resistance against rain. dust. and corrosion caused by corrosive liquids like salt mist. This comprehensive protection ensures stable performance even in harsh working conditions and weather.
Featuring highly efficient heat dissipation. this ESC ensures low noise operation and rapid responsiveness. while an advanced control algorithm provides precise and swift motor control.
Advanced Protection for Enhanced Security: This ESC supports 6-14S lithium-ion batteries. offering light weight and robust protection (IP67 rating) suitable for demanding applications like endurance drones that require high voltage and low current levels.
The SUNNYSKY EOLO 40A Pro ESC features a maximum allowed voltage of blank. a maximum allowed peak current of 60A when using 3S batteries. and supports One Shot125 technology. The controller is compatible with motor signals up to 50-500 Hz in frequency. and uses Pulse Width Modulation (PWM) with a default output frequency of 16 KHz.
