Description

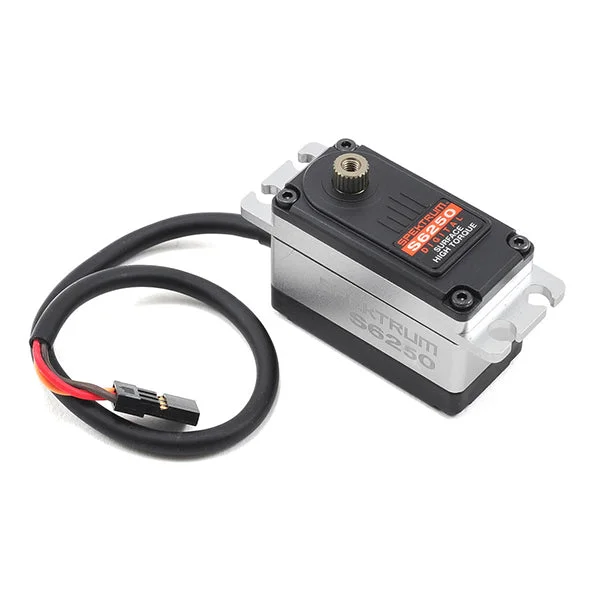

The Spektrum S6250 is a high voltage upgrade from Spektrum’s budget minded S6230 series servo. Offering all the same benefits in a slim package, but packing a major upgrade in speed and torque with the addition of a high voltage capable motor. The S6250 supports a standard servo mounting form factor, which makes it a universal fit for 1/10 class vehicles.
Key Features:
- High Voltage capabilities for improved speed and torque ratings
- Removable wire harness with different lengths available
- 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
- Aluminum case for good heat dissipation
- Aluminum mounting tabs
- NMB dual main bearings
- 23T output shaft
Specifications:
- Size Category: Specialty
- Type: Digital
- Application: 1/10 Buggy, Truck, 1/8 Buggy, Truck
- Torque:
- 271 oz-in (19.5kg-cm) @ 6V
- 339 oz-in (24.4kg-cm) @ 7.4V
- 382 oz-in (27.5kg-cm) @ 8.4V
- Speed:
- 0.13 sec/60 deg @ 6.0V
- 0.11 sec/60 deg @ 7.4V
- 0.09 sec/60 deg @ 8.4V
- Length: 1.61 in (41mm)
- Width: 0.82 in (20.8mm)
- Height: 1.25 in (31.8mm)
- Weight: 2.3 oz (65.2g)
- Bushing Or Bearing: Bearing
- Bearing: Dual
- Motor Type: Coreless
- Connector Type: Z-connector, removable
- Gear Type: Metal
- Gear Material: Steel, Aluminum
- Current Draw Idle: 9.8 mA @ 6.0V
- Current Draw Stall: 4900mA @ 6.0V
