Description

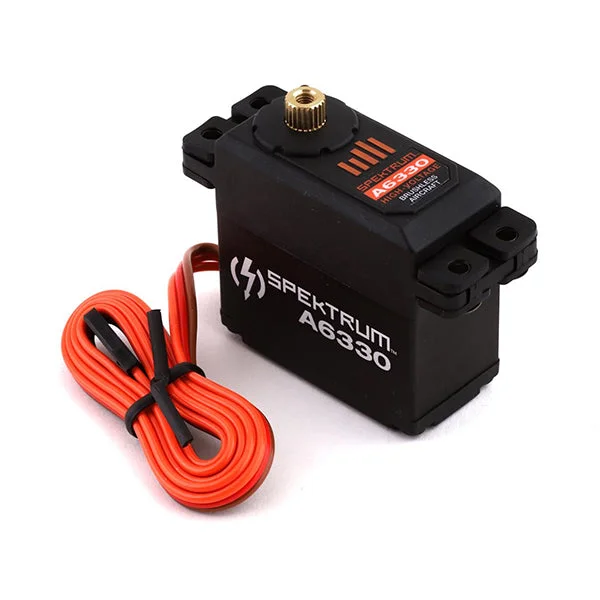

The Spektrum A6330 Digital High Torque Metal Gear High Voltage Aircraft Servo delivers amazing performance for a wide range of vehicles and aircraft. This servo delivers amazing performance for a wide range of vehicles and aircraft. High-Voltage (HV) capable, the A6330 can produce an impressive 248 oz-in of torque (17.8kg) and a remarkable 0.10 sec/60 degree transit speed with 8.4V input. The Low-wear, all metal gear drive train is powered by a long-lasting brushless motor and supported with dual ball bearings for smooth operation. A strong metal case adds durability and enhanced heat dissipation.
Features:
- Brushless motor provides long lasting durability and impressive power and speed
- High Voltage (HV) capable (6.0-8.4v input range)
- Outstanding torque and speed in a standard servo size (248 oz-in and .10 sec/60° @8.4v)
- Durable and long lasting brushless motor
- Low wear and tightly meshed all metal gear train
- Dual bearing supported drive train helps maximize smooth operation
- Aluminum center servo case helps keep operating temperatures low
- Soft start helps prevent component and airframe damage during un-intentional initializations
- Over Current and Temperature protection
- Helpful initialization start tone lets pilot know when the servo is ready
- Integrated servo failsafe holds last known position if signal is lost and power is maintained
- Frequency : 50-400hz
Specifications:Bearing: Dual ball bearingsTorque: 126.6 oz-in (9.11 kg-cm) @ 6V, 178 oz-in (12.82 kg-cm) @ 7.4V, 248 oz-in (17.86 kg-cm) @ 8.4VOverload Protection: YesProduct Height: 1.56″ (40 mm)Servo Operating Voltage: 6.0 – 8.4V (HV)Application: AirplaneProduct Length: 1.58″ (40 mm)Servo Type: DigitalSpeed: 0.13 sec/60 deg @ 6V, 0.11 sec/60 deg @ 7.4V, 0.10 sec/60 deg @ 8.4VProduct Width: 0.79″ (20 mm)Maximum Servo Speed: 0.100-0.149 secRotation Range: 120 degreeMaximum Servo Torque: 200-349 oz-inMotor Type: BrushlessProduct Weight: 2.25oz (71g)Spline Count: 23 – ToothWire Gauge: 22 AWGInput Voltage: 6 – 8.4VProgrammable: NoServo Size Category: StandardGear Type: Metal
