Description

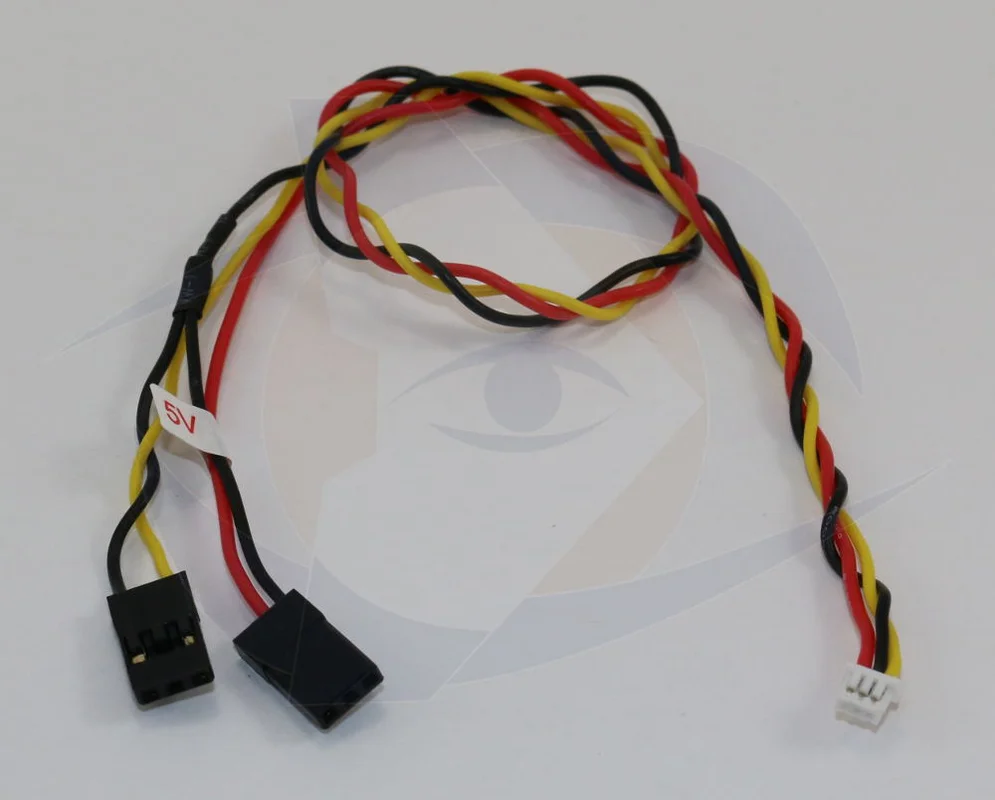

Optional Servo Style A/V cable for GoPro Live Video Board
Supplied 30cm cable will connect to Molex connector and provide you with servo style connectors with convenient pin functions:
Black – Ground
Red – +5V power for charging
Yellow – Composite video out from camera
Please pay attention to different voltages when you are connecting this cable to your system.
DO NOT CONNECT MORE THAN 6V TO POWER PIN!!!
THIS WILL DAMAGE YOUR CAMERA
You can charge GoPro camera from by connecting 5V wire to RC receiver’s 5V pin or other UBEC 5V source. You have to connect video connector’s ground pin also to start charging. Please take in to account additional 800mA used by GoPro when charging.
Board not included, cable only.
.
