Description

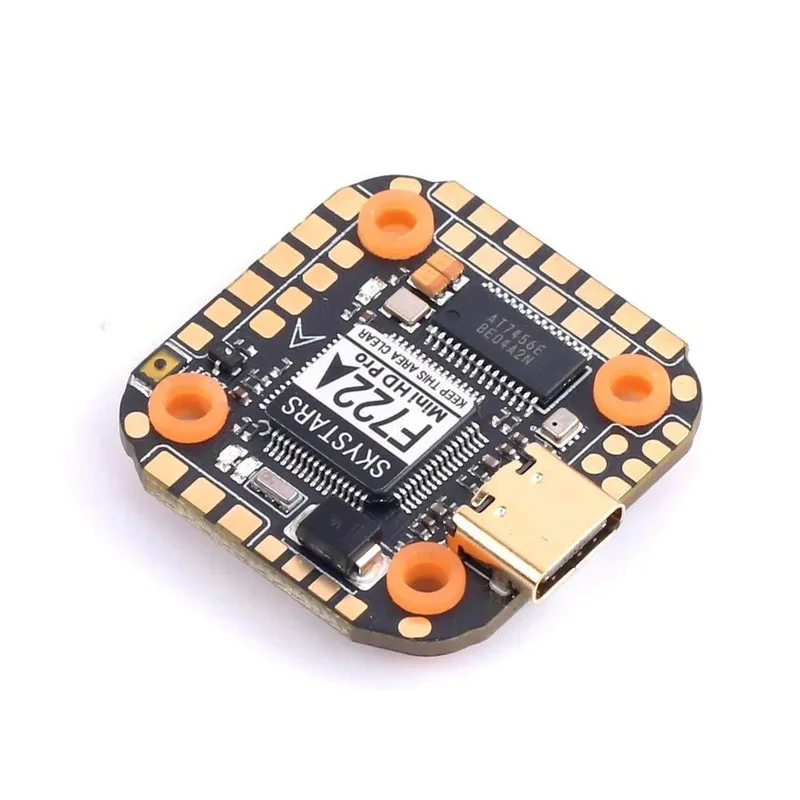

SkyStarsRC’s F722 Mini HD Pro 20×20 Flight Controller, with F7 processor, 6 UARTS, and a 10V 2A Regulator for Caddx Vista or DJI Air Unit! Plus includes Barometer and Blackbox!
Check out all our 20X20 FCs! and our SkystarsRC collection!
Specifications
SkyStarsRC F7 Mini HD Pro 3-6S 20×20 Flight Controller
- MCU: STM32F722RGT6 216MHz
- IMU(Gyro): BMI270
- USB Port: Type-C
- Barometer: yes
- OSD Chip: AT7456E chip
- DJI Air Unit Connection: 6-pin connector and solder pads
- Blackbox 16MB
- Current Sensor: Supported
- Power Input: 3S-6S LiPo
- Power Output: 5V 2A & 10V 2A
- ESC Signal: M1-M4 available
- UART: 6 Sets
- I2C: Supported
- LED: Supported
- Buzzer: Supported
- Firmware Target: SKYSTARS F7HDPRO
- Mounting: 20x20mm
- Dimensions: 31x30x7.8mm
- Weight: 6g
INCLUDES:
- 1 x SkyStarsRC F7 Mini HD Pro 3-6S 20×20 Flight Controller
