Description

SPECIFICATIONS

Wheelbase: Upper Shell

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Radio control Transmitter

Tool Supplies: Radio control Transmitter

Technical parameters: Value 2

Size: 51*41*13

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 14+y

RC Parts & Accs: Transmitters

Quantity: 1 pcs

Origin: Mainland China

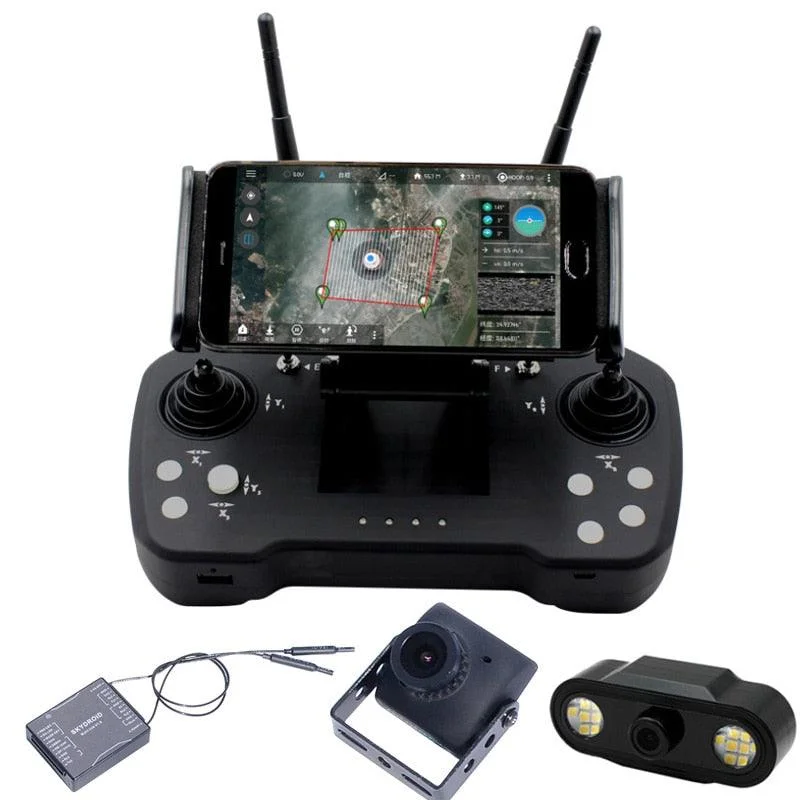

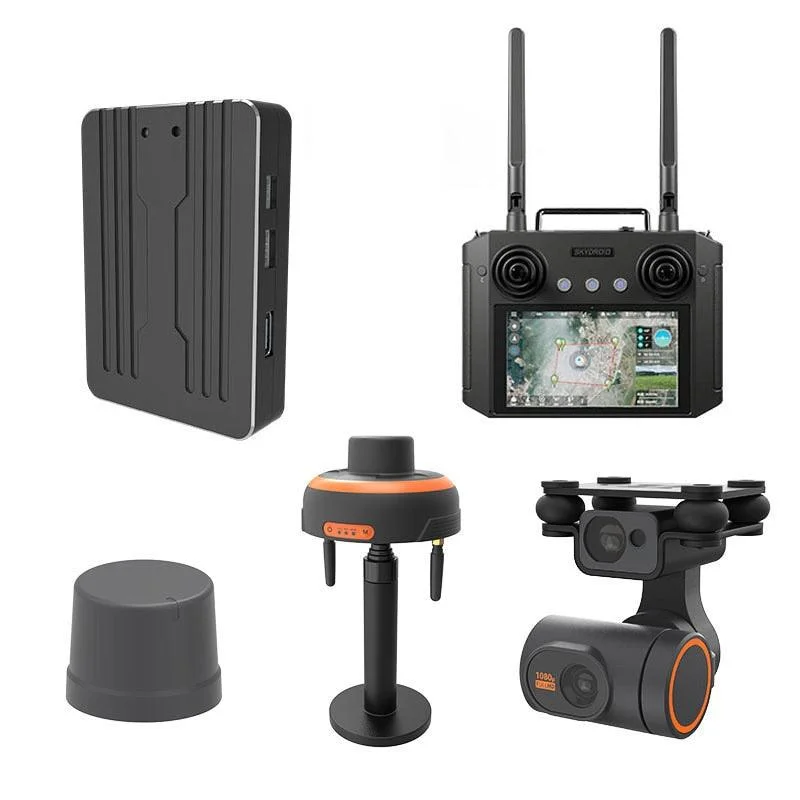

Model Number: Skydroid H12

Material: Metal

Four-wheel Drive Attributes: Radio control Transmitter

For Vehicle Type: Airplanes

Brand Name: U-Angel-1988

Main processor: STM32H743

Gyroscope: BMI088Electronic compass: QMC5883LBarometer: LPS22HBInterface: GH1.25Antenna length: default 30cm. 40cm. 50cm optionalPWM output: 12 OneShot/PWM output (configurable)Receiver: Built-in H12 receiverReceiver antenna gain: 3dBmReceiver transmit power: 100mW/20dBmGPS: M8NRC OUT SBUS: 1GPS UART serial port: 1POWER power port: 1Audio output port: 1Camera interface: 1CAN interface: 1Support models: 3-8 axisWorking environment and physical parameters:POWER input voltage: 2s-18sUSB voltage: 5V±0.3VServo voltage: 5V±0.3VWorking temperature: ﹣40~80℃Weight and size:Size: 68*47*13mmWeight: 62gObstacle avoidance dual axis Gimbal:Size: 57.5*49*47.1mmSpecification: 1/2.7 sensor EFL=2.4mmAngle: 100°Video resolution: 1080p 25fpsWeight: 51gMeasuring range: 0.05-20mMeasurement accuracy: 0.05-2m: ±2cm 2-20m: ±2%Measuring speed: 50Hz/100HzLaser resolution: 1cmLight source wavelength: 750-830mmWorking voltage: 3.5-5.5VWorking temperature: ﹣10~60℃Power consumption: 60mA@5VS1: Electronic control systemFeatures: high integration. integration. multiple expansionproduct :1. High integration and multiple expansion:The SKYDROID S1 electronic control system has rich functions. and has a built-in receiver developed by SKYDROID. which can realize long-distance and stable data transmission and image transmission. S1 has built-in high-quality audio decoding. which can be connected to speakers with power amplifiers to realize functions such as shouting and playing audio.2. Vehicle-level sensors:SKYDROID S1 is equipped with a vehicle-grade sensor BMI088. BMI088 is a high-performance inertial measurement unit that can provide low noise and low drift characteristics under temperature fluctuations. and has good sturdiness and stability.3. Rich interfaces:SKYDROID S1 has 12 channels of PWM. CAN. audio output and other interfaces. With its rich interfaces. it has the expansion ability of undershooting and can be used in different scenarios. different functions and equipment requirements.4. Easily adjust parameters:Through the SKYDROID Fly APP. the equipment equipped with S1 can be adjusted in a fool-like manner. Various parameter settings are clear at a glance. making the originally complicated adjustment parameter settings simple and easy.5. Laser obstacle avoidance Gimbal:The SKYDROID S1 full package comes standard with dual-axis brushless laser obstacle avoidance Gimbal. 1080P true HD camera. adjustable dual-axis stabilization Gimbal. reduce jitter. stable picture. measurement blind area as small as 5cm. measurement speed up to 100Hz. measurement range up to 20m . The measurement accuracy can reach ±2cm. It can effectively avoid the failure of obstacle avoidance due to insufficient light or mirror reflection.6. Secondary development:SKYDROID provides flight control schematics and source code for S1 users to facilitate secondary development.7. Audio output:S1 has an audio output interface. which can realize functions such as shouting and text-to-speech after connecting to a speaker with a power amplifier.

Product specifications:Dimension: 57.5 x 49 x 47mm (Width. Height. Depth)Weight: approximately EE (Empty weight. not specified)Frequency range: 50Hz/100HzMain sensor: EFL-2.4mm. best suited for (#4#) applicationsIllumination wavelength: AE (not specified). measured MRK (maximum reflectivity rate): 750-830nmVideo resolution: (#531#) 1080P. compatible with II@E (interface)Power supply voltage: 3.5-5.5V. current consumption: approximately 60mA @ 5VOperating distance: EE (Empty weight. not specified). maximum range: approximately 2m (short-range) to 20m (long-range)
