Sequre H743 4–8S Flight Controller – MyFPV

Description

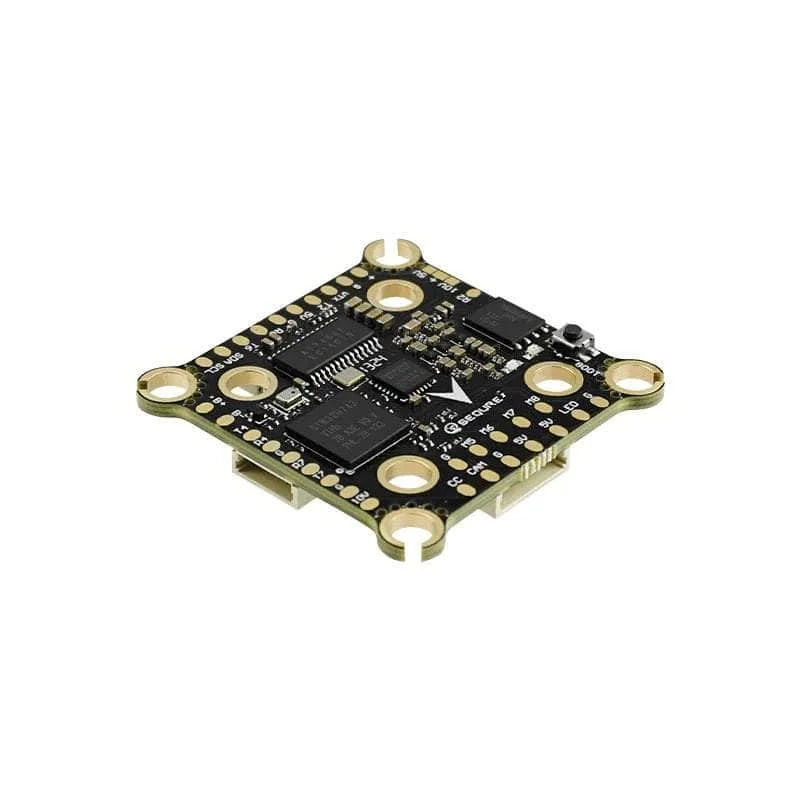

Sequre H743 4–8S Flight Controller

See all of our Sequre Products!

The Sequre H743 Flight Controller is engineered for serious FPV pilots who demand high performance and flexibility. Powered by the ultra-fast STM32H743 processor running at 480MHz and equipped with the ultra-reliable MPU6000 gyroscope, this FC delivers precise gesture sensing, stable control, and lightning-fast responsiveness. It supports 4–8S LiPo input, has an onboard barometer (BMP280), AT7456E OSD chip, and a generous 16MB black box for flight logging.

Ideal for advanced builds, the H743 features 6 UARTs, 8 motor outputs for X8 configurations, and dual BEC outputs (5V/2.5A and 10V/2A), allowing direct connection to DJI O3 or analog VTX systems. Its dual mounting patterns (20x20mm and 30.5×30.5mm) make it suitable for everything from racing drones to cinematic rigs. Compact, lightweight, and highly capable — this flight controller is built for any mission.

Specifications:

• Brand: SEQURE

• Model: H743

• Processor: STM32H743 (480MHz)

• Gyroscope: MPU6000

• Barometer: BMP280

• OSD Chip: AT7456E

• Black Box: 16MB onboard memory

• Firmware: SEQUREH7

• Input Voltage: 4–8S LiPo

• BEC Outputs: 5V/2.5A and 10V/2A

• UARTs: 6

• Motor Outputs: Up to 8 (M1–M8, supports X8)

• ESC Telemetry: RX8

• LED Support: WS2812 LED Strip

• Buzzer: Supported (includes 5V buzzer)

• USB Port: Type-C

• Mounting Holes: 20x20mm / 30.5×30.5mm (Φ4mm)

• Size: 36.5 x 36.5 x 6mm

• Weight: 7.5g

Package Includes:

• 1x Sequre H743 4–8S FC (MPU6000)

• 1x 40mm Reverse SH1.0-8P Cable

• 1x 100mm Single-head SH1.0-4P Cable

• 1x 60mm 5V Buzzer

• 5x M3x8mm Shock-absorbing Balls (Black)

• 5x M3x6.6mm Shock-absorbing Balls (Black)
