Description

RUSHFPV RUSH TANK SOLO VTX  SPECIFICATIONS

Brand Name: Rush

Is Electric: No battery

Origin: Mainland China

Material: Composite Material

Recommend Age: 14+y

RC Parts & Accs: Antennas

Size: 37*24*6.7mm

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Certification: CE

Upgrade Parts/Accessories: Frame

Remote Control Peripherals/Devices: RECEIVERS

Tool Supplies: Assembly Category

Quantity: 1 pcs

Model Number: RUSHFPV RUSH TANK SOLO VTX 5.8G

Four-wheel Drive Attributes: Assemblage

Wheelbase: Bottom Plate

RUSHFPV RUSH TANK SOLO VTX 5.8G 48CH PitMode Pitmode 25mW 400mW 800mW 1.6W Adjustable 2-6S Microphone for FPV Long Range Drone

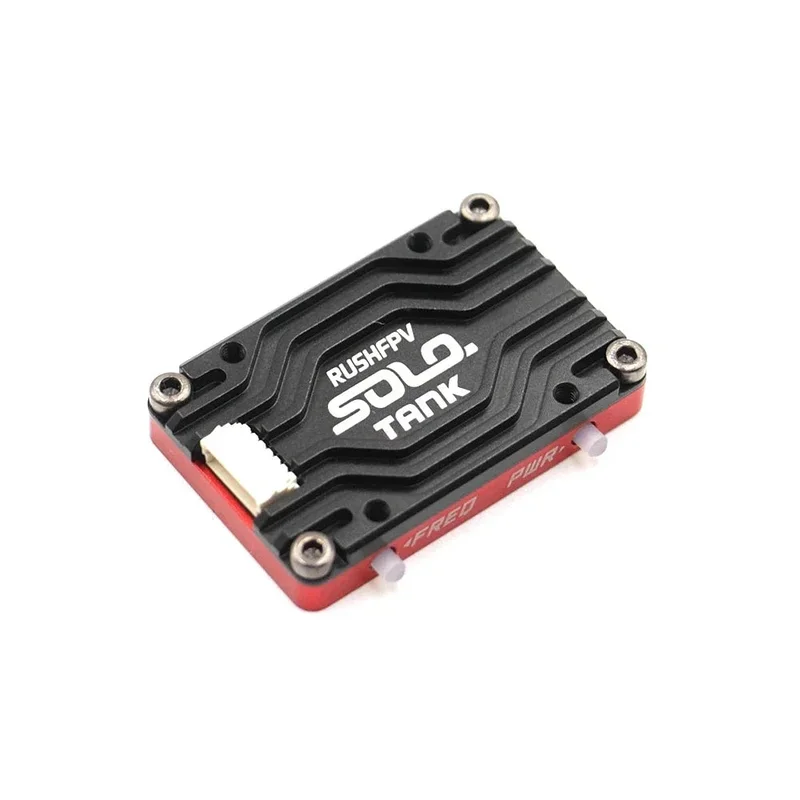

Item: RUSH Solo Tank 5.8G VTX Video Transmitter
Parameters:
Power level: PIT-25mW-400mW-800mW-1W-1.6W
Channel: 48CH
InputT voltage: DC 7-36V (6S LIPO)
Output voltage: DC 5V (Max 600mA)
Video format CVBS PAL/NTSC
Audio: 6.5M MONO WITH AGC MIC
Dimensions: H 37mm*W 24mm* D 6.7mm
Weight: 12g
External control: SMARTAUDIO V2.1
(TBS authorized commercial)
MAX Power level can provide 1W(30dbm) or more power depending on the environment’s ability to dissipate heat.

Features:
1. 1.6W super power
2. Unique heat dissipation structure
3. Compact structure design
4. Two-color CNC shell
5. The button indicator lights are combined into one
6. Built-in microphone

• Package Included:

• Solo Image Transmission x1
  power cable x1
  MMCX to SMA adapter cable x1
  Antenna x1

FPVRACING TANK SOLI 5.90Hz VTX RUSH VSER MANUAL WARNINGS . the user needs to have relevant professional knowledge while mounting or operating the product. any illegal use may cause potential danger .

The selected channel and frequency band will be displayed sequentially. with the number of red flashes indicating the channel and blue flashes indicating the band. VTX parameters can be quickly set via the on-screen display (OSD) or radio control.

Warning: Overheating may occur if airflow is inadequate. A cooling tank is required for safe operation. Please ensure proper installation and compliance with frequency and power regulations (F36v antenna. level rush constant) to prevent overheating.
