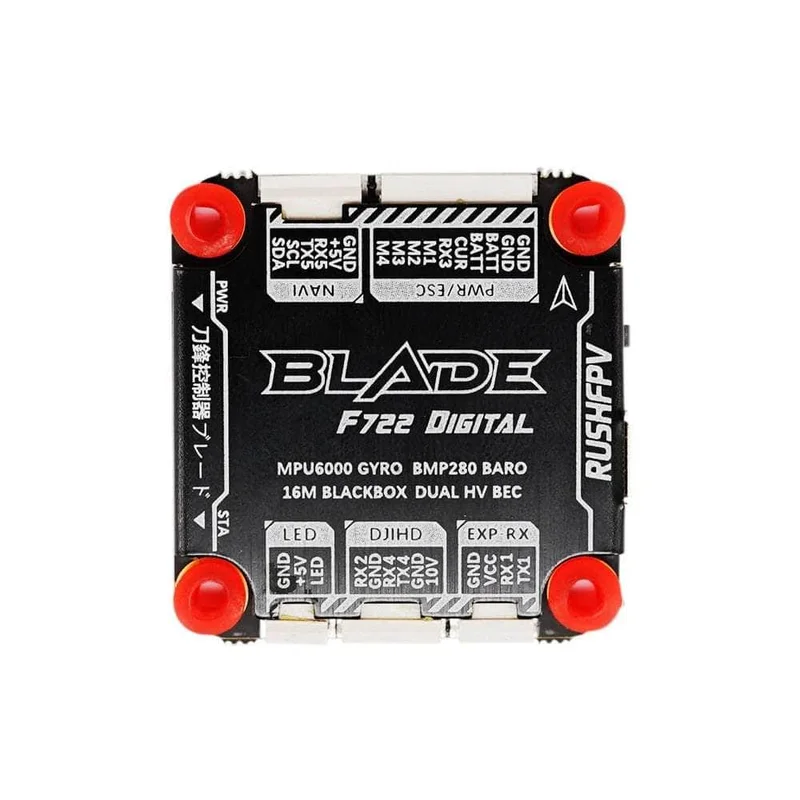

RUSHFPV Blade F722 HD 3-8S 30×30 Flight Controller – MPU6000

Description

The Rush Blade F722 is a versatile 30×30 for use in various types of builds. DJI compatibility and plugs all around make this FC an incredibly easy platform to build off of!

Make sure to check out our other 30×30 Flight Controllers and the rest of our Rush FPV products!

Specifications

• MCU: 216MHz
• GYRO: MPU6000
• OSD: Onboard
• UARTS: 5
• PWM Outputs: 6
• Input Voltage: 3-8S
• BEC: 5V/5A 10V/3A
• Mounting Pattern: 30.5mm x 30.5mm

Includes

• 1 x Rush FPV Rush Blade F722 30×30 Flight Controller for DJI
• 2 x 60MM LED/RX Cable
• 1 x 60MM ESC Cable
• 1 x 110MM NAVI Cable
• 1 x 110MM Air Unit Cable
• 5 x 8MM Grommet
• 5 x 5MM Grommet

Wiring Diagram
