Description
RadioMaster ZORRO Transmitter SPECIFICATIONS
Wheelbase: Upper Shell
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Adapter
Tool Supplies: Battery
Technical parameters: KV1100
Size: 20*15*6cm
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 12+y
Recommend Age: 14+y
RC Parts & Accs: Radio Systems
Quantity: 1 pcs
Plastic Type: PC
Origin: Mainland China
Model Number: RadioMaster ZORRO
Material: Plastic
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes

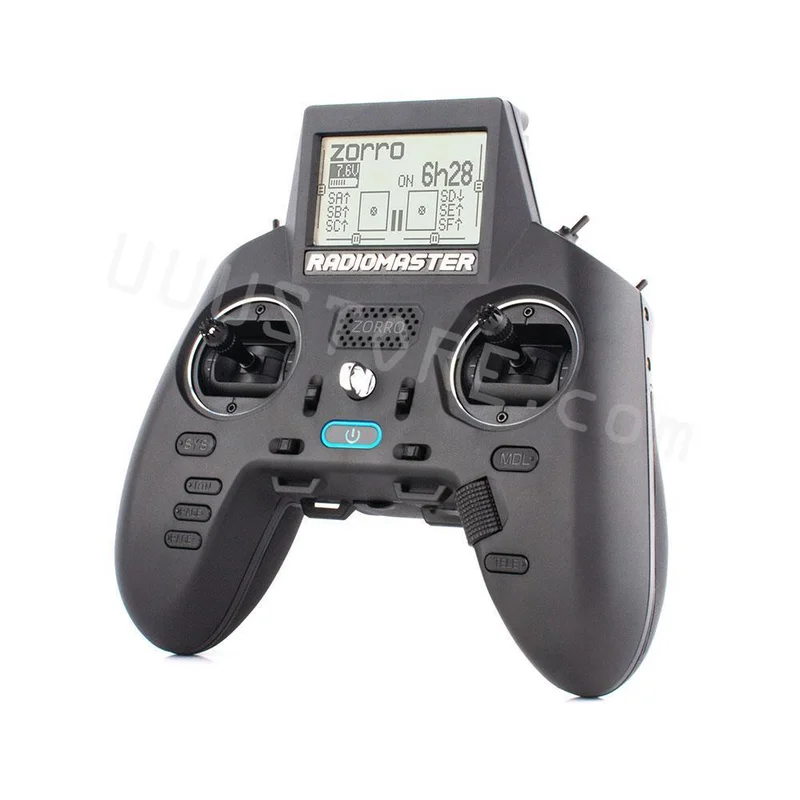

RadioMaster Zorro 2.4GHz 16CH Hall Sensor Gimbals CC2500/JP4IN1/ELRS Multi-protocol OpenTX/EdgeTX System Radio Transmitter with RC Receiver & TBS Nano Crossfires Module Combo Set for RC Drone
OVERVIEW:
Featuring an ergonomic design. large bright LCD screen in the perfect viewing position. travel adjustable HALL sensor gimbals. a nano size external RF module bay. built in USB-C Charging. USB-C Data port for updating and playing simulators. rear and top assignable push buttons. scroll wheels. RadioMasters 7 button menu navigation system. headphone audio output. external power source input and a host of RF options the RadioMaster Zorro is set to change the game once again.
:
Brand Name: RadioMaster
Item Name: Zorro Radio Transmitter
Weight: 350g
Size: 170*159*108 mm
Operating frequency: 2.400GHz-2.480GHz
Internal RF Options: CC2500 multi-protocol / 4-in-1 multi-protocol / ELRS 2.4GHz
Supported protocols: Module dependent
RF power: CC2500 and 4-in-1: 20dBm max. / ELRS: 22dBm max.
Antenna gain: Folding 2db
Operational current: 160mA/ExpressLRS/ExpressLRS
Package Included:
1 x Zorro Radio Transmitter (Optional Version)
1 x EP2 ELRS RC Receiver (Only ELRS Starter Set)
2 x EP1 ELRS RC Receiver (Only ELRS Starter Set)
1 x TBS Nano Crossfires TX Module (Only CC2500+Nano Crossfires/4IN1+Nano Crossfires)
| Zorro Radio Control Specs | |||||
| Versions | Zorro Radio Control CC2500 |
Zorro Radio Control 4in1 | Zorro Radio Control ELRS | Zorro Radio Control ELRS Starter Set |
Zorro Radio Control CC2500 + TBS Nano Crossfires Combo |
| Physical dimensions | 170*159*108mm | ||||
| Weight | 350 grams | ||||
| Operating frequency | 2.400GHz-2.480GHz | ||||
| Internal RF Options | CC2500 multi-protocol | 4-in-1 multi-protocol | ELRS | CC2500 multi-protocol | |
| Supported protocols | Module dependent | Module dependent | ELRS | Module dependent | |
| RF power | CC2500: 20dBm max. | 4-in-1: 20dBm max. | Up to 150mw ( CE & FCC Versions will be available) | CC2500: 20dBm max. | |
| Antenna gain | Folding 2db | ||||
| Operational current | [email protected] | ||||
| Operational voltage | 6.6-8.4v DC | ||||
| Control distance | > 2km @ 20dbm | > 2km @ 20dbm | Receiver and Power Output dependant | > 2km @ 20dbm | |
| Operating system | OpenTX / EdgeTX Compatible | ||||
| Control channels | Maximum 16 (Rx dependent) | ||||
| Display | 128*64 Monochrome LCD | ||||
| Battery | 2 x 18350 (Not included) | ||||
| Charging | Built in USB-C Charging | ||||
| Gimbal | Hall-effect | ||||
| Module bay | Nano size (Compatible with TBS Nano Crossfires / Nano Tracer / IRC Ghost) | ||||
| Firmware Upgrade method |
Via USB or SD card (SD Not included) | ||||
RadioMASTER ZORR0 Pei orro 6h281 Inl ” Io Supports OPENTX&EDGETX open-source operating systems RF configurations .
