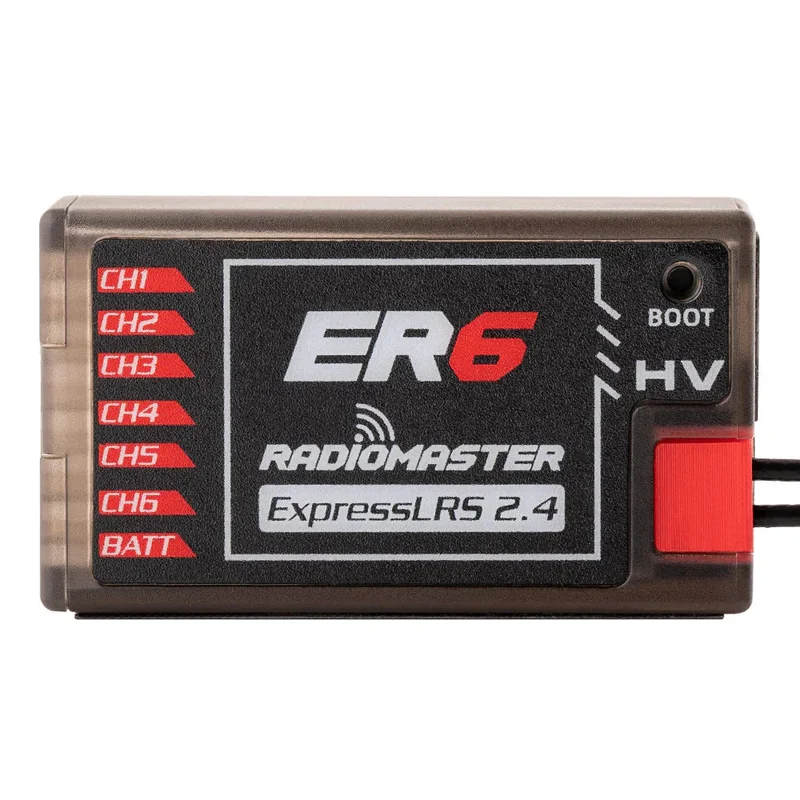

RadioMaster ER6 2.4GHz ELRS PWM Receiver – Specially Designed For Fixed-wing Aircraft Airplane Drone

Description

The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system. It offers high performance. high reliability. flexible configuration. fast response speed and ultra-long range bringing you brand new experience with your hobby.

The ER6 ELRS receiver has been specially designed for fixed-wing users. It can drive up to 6 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use. A 4-wire CRSF interface is provided to facilitate later expansion of telemetry sensors. The ER6 features a dual-antenna with telemetry power up to 100mw. The receiver shell adopts one-piece molding process with high structural strength.

Launch Video

Features

• Based on the Revolutionary ExpressLRS System
• High performance. high reliability. flexible configuration. fast response speed and ultra-long range
• Support 6 PWM Channels
• Optimized ground up PCB design
• Automatically voltage telemetry of external battery voltage or built-in receiver voltage
• Supports Wi-Fi updates and WEBUI configuration
• High quality 2.54 mm connector
• Standard 20 cm High Sensitivity Antenna
• Reserve 4pin CRSF input port
• The shell adopts one-piece molding process with high structural strength
• For fixed-wing aircraft and more
• Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

Specification

• Item: ER6 2.4GHz ELRS PWM Receiver
• Power supply: DC 4.5 – 8.4V
• Antenna type: 20cm high sensitivity dual antenna
• Wireless protocol: ExpressLRS 3.3.0 pre-installed
• Output channel: 6CH PWM
• Serial Output: CRSF / Sbus
• Telemetry power: maximum 100mw (LUA Adjustable)
• Telemetry Battery voltage detection range: DC 4.0 – 35V
• Bus interface: CRSF
• Weight: 14.5 grams
• Dimensions: 43*25*15mm
• Firmware: Device Category: Radiomaster 2.4Ghz / Device: ER6 2.4GHz Diversity+6xPWM RX

Size

RadioMaster ER Series Receivers

• ER4 ELRS PWM Receiver
• ER6 ELRS PWM Receiver
• ER8 ELRS PWM Receiver
• ER6G/ER6GV ELRS PWM Receiver
• ER8G/ER8GV ELRS PWM Receiver

Package Includes

• 1 * ER6 2.4GHz ELRS PWM Receiver
• 1 * Voltage telemetry wire (Type-B)
• 1 * CRSF wire
• 1 * ELRS- RX- SBUS wire
• 1 * User Card

Download

• ER6 Receiver User Manual
