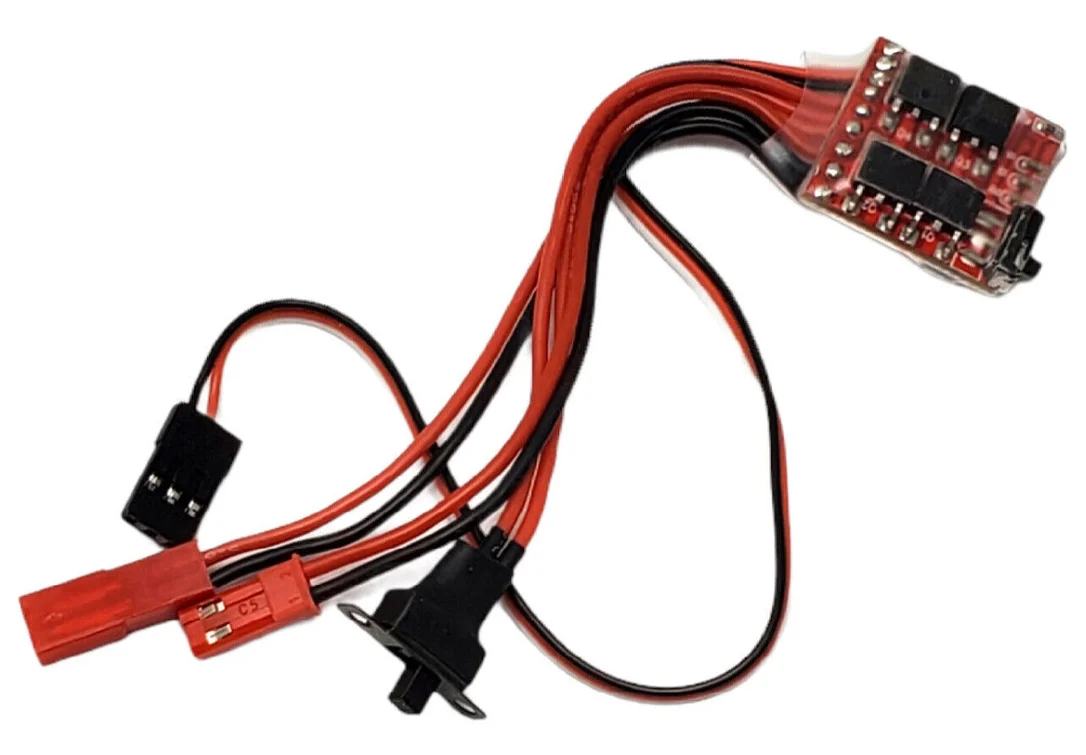

Powerhobby 30A Micro Brushed ESC for Winch Control / 1/24 Crawler Axial SCX24

Description

Powerhobby 30A Micro Brushed ESC for Winch Control / 1/24 Crawlers

Specifications:
-Input voltage: 4V~8.V
-Lithium battery: 2S(7.4V)
-Current :Forward 30A / Instantaneous peak 40A / Backward 20A / Brake 40A
-UBEC output: 5.7V, 1A. (supply receiver, servo power) The default is JST head with switch.
-Wiring: Battery (Red cable:”+” , Black cable:”-“)
            Motor (Positive and Negative are not specified)
            Black red white line -> receiver ch2 (usually black on the outside, white by stickers)
-Adjustment: The ESC is set at the mid-range interval. The new control generally needs to fine-tune the throttle so that the ESC does not light up. It is the neutral position. The throttle trim is TH TRIM.
-Size: 25*23*5mm / 1 * 0.9 * 0.2 inch

Notes:

May not be compatible with all Sanwa models

PH2.0 connectors used for motor and esc (compatible with AX24 & SCX24 models)
