PandaRC VT5804M L1 5.8G 25/100/200/400/600mW VTX FPV Transmitter – MyFPV

Description

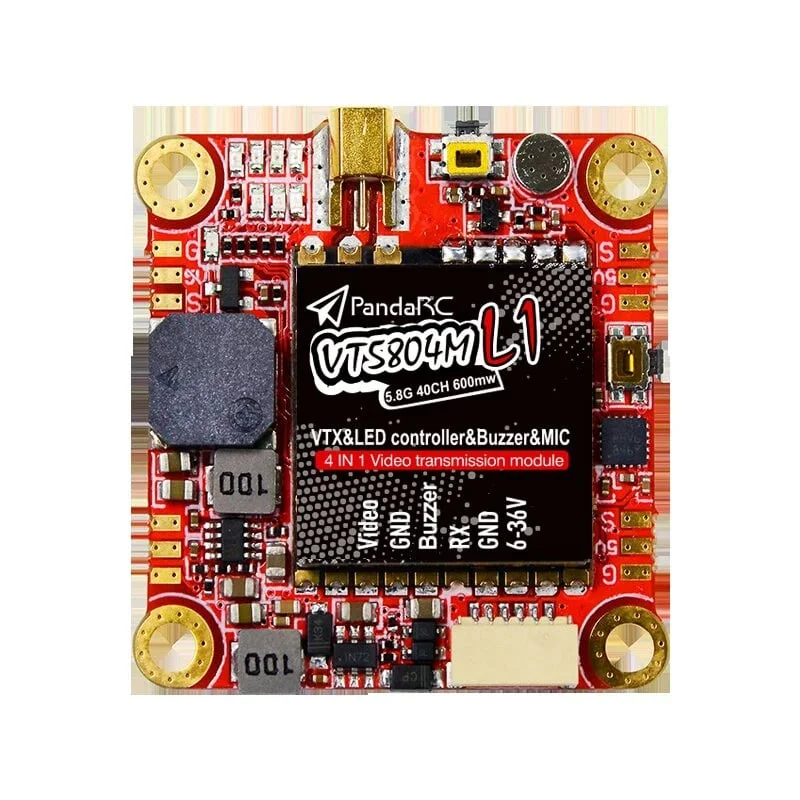

PandaRC VT5804M L1 5.8G 25/100/200/400/600mW VTX FPV Transmitter

Check out all of our PandaRC Products

Simplify your FPV drone build and add incredible features with the PandaRC VT5804M L1. This is more than just a video transmitter; it’s a 4-in-1 solution that integrates a powerful 600mW VTX, a full RGB LED controller, a loud 85dB buzzer, and a microphone onto a single 30.5×30.5mm board. It’s the ultimate utility board for creating a clean and feature-packed FPV drone.

Powerful Video & Control

The VT5804M delivers a reliable 5.8GHz signal with a wide range of selectable output power, from a race-legal Pit Mode and 25mW all the way up to a powerful 600mW for excellent range and signal penetration. It uses the IRC Tramp protocol, allowing you to easily change your channel and power settings directly from your radio via the Betaflight OSD, eliminating the need to fiddle with tiny buttons on the board.

Integrated LED, Buzzer & Mic System

What makes this board unique are the built-in extras that save you time and soldering. The integrated LED controller comes with four LED bars and cables, allowing you to light up your quad’s arms right out of the box. You can cycle through 16 preset colors and patterns with the onboard button or connect it to your flight controller for full, customized Betaflight control. The loud 85dB buzzer helps you find a lost drone, and the onboard microphone lets you record motor sounds with your FPV footage—all without needing to wire and mount separate components.

Key Features:

• 4-in-1 Utility Board: Combines a VTX, LED Controller, Buzzer, and Microphone to save space, weight, and soldering time.
• Selectable 600mW Power: Versatile power output for any situation, from racing to freestyle, with Pit Mode for safe power-ups.
• Complete LED System: Includes 4 LED bars and cables for easy, customizable lighting on your drone’s arms.
• Built-in Buzzer & Microphone: Adds essential finding and audio-recording capabilities without extra components or wiring.
• Wide 2S-8S Voltage Input: Exceptional compatibility with almost any FPV drone battery setup (6V-36V).
• IRC Tramp Control: Easily change your VTX settings remotely using your radio and OSD menu.

Specifications:

• Input Voltage: 6V – 36V (2S-8S LiPo)
• Output Power: PIT / 25mW / 100mW / 200mW / 400mW / 600mW
• Frequency: 5.8Ghz, 40 Channels (including Raceband)
• Control Protocol: IRC Tramp
• Connector: MMCX
• Mounting Pattern: 30.5×30.5mm
• Weight: 10g (including antenna)
• Onboard Features: LED Controller, 85dB Buzzer, Microphone

What’s in the Box?

• 1x PandaRC VT5804M L1 VTX Board
• 4x LED Bar
• 4x 100mm LED Cable
• 1x 5.8GHz Linear MMCX Antenna
• 1x 6-Pin 100mm VTX Cable
