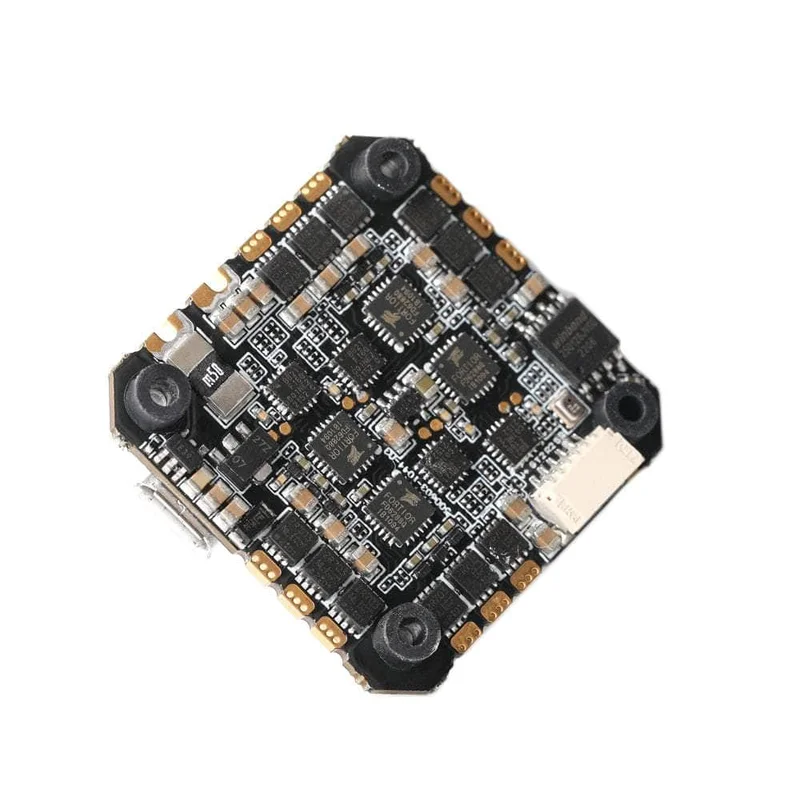

NewBeeDrone HummingBird F4 V2 AIO 1S Whoop Flight Controller (F4 FC / 12A 4in1 ESC) – ELRS 2.4GHz

Description

We heard you asking for it, so we got it, the HummingBird F4 V2 Flight Controller, these AIO whoop style FCs are meant as replacements and upgrades for whoops/toothpick builds. This board is also the direct replacement board for NewBeeDrone BNF Hummingbird F4 V2.1 1S Brushless Whoop.

Check out our other AIO flight controllers  as well as the rest of our NewBeeDrone selection.

Specifications

• STM32F411 MCU (for the main controller (Preloaded with Betaflight)
• Support 1S battery ONLY
• Current sensor onboard
• ESC-12A Per Motor Channel BB21 MCU
• BlHeliS Support DShot(150 300 600) Multishot
• Gyro- BMI270
• Onboard Sideway RGB LED controlled by Betaflight
• Support BeeSign signal compatible with NBD VTX-Camera System
• Onboard Diversity SPI SX1280 Receiver(EXPRESSLRS)
• MotorPlug JST1.0
• NBD OSD(Betaflight OSD Compatible)
• 5V 2A Power support for external VTX Camera Or Receiver.

Includes

• 1x BeeBrain BLV4 Flight Controller
• 4x Grommet
• 1x Mounting Kit
• 1x Receiver Antennas
• 1x VTX Antenna

Wiring Diagram
