NEEBRC 2206 2212 2306 2814 2826 3536 3542 4250 RC Outrunner Brushless Motor for Fixed-wing FPV Racing Drone Quadcopter Airplane

Description

Features:
1.High Quality Materials: with long life Japanese NMB ball bearings. efficient Japanese Kawasaki stator steel and oxygen free pure
comer wires. CNC machined aluminum case.
2.High Temperature Resistance: N40UH magnets and silicone wire leads are able to withstand high temperatures.
3.Brushless Motor: light weight. 1500KV high RPM and powerful brushless motor bring you a stimulated flight.
4.Patented balance techniques
5.Suit for RC Fixed Wing Airplane Multicopter

:
1.This professional brushless motor comes with high quality.
2.Powerful motor with light weight is sure to bring you stimulated flight.
3.It is a good choice for RC drone fans.

Specifications:
Model: D2206 1500KV Motor
KV(RPM/Volt): 1500KV
Battery (Cell Lipo): 2-3S
Suggested Prop: 1047 9050 8040
Length: 22.4mm
Width: 27mm
Shaft Diameter: 5.5mm
Item Weight: 25g/pcs

Model: C2826 1290KV Motor
KV(RPM/Volt): 1290KV
Battery (Cell Lipo): 2-4S
Suggested Prop: 1290
Length: 62mm
Width: 27.7mm
Shaft Diameter: 5mm
Item Weight: 51g/pcs

Model: D2212 2450KV Motor
KV(RPM/Volt): 2450KV
Battery (Cell Lipo): 2-3S
Suggested Prop: 6040
Length: 51.3mm
Width: 27.7mm
Shaft Diameter: 2mm
Item Weight: 58g/pcs

Model: D3536 1200KV Motor
KV(RPM/Volt): 1200KV
Battery (Cell Lipo): 2-4S

Suggested Prop: 10 x 6
Voltage:11.1
Load Current(A):35
Pull:(G):1580
Power(W):388
Efficiency(g/W):4.1
Length: 67.3mm
Width: 34.7mm
Shaft Diameter: 6mm
Item Weight: 111g/pcs

Model: D2814 1000KV Motor
KV(RPM/Volt): 1000KV
Battery (Cell Lipo): 3-4S
Suggested Prop: 12×6/11×7
Length: 82.1mm
Width: 35mm
Shaft Diameter: 6mm
Item Weight: 96g/pcs

Model: C3542 920KV Motor
KV(RPM/Volt): 920KV
Battery (Cell Lipo): 2-4S
Suggested Prop: 12×6
Length: 87.5mm
Width: 34.7mm
Shaft Diameter: 6mm
Item Weight: 138g/pcs

Model: D4250 800KV Motor
KV(RPM/Volt): 800KV
Battery (Cell Lipo): 3-7S
Suggested Prop: 11×5.5
Length: 101mm
Width: 42.5mm
Shaft Diameter: 8mm
Item Weight: 213g/pcs

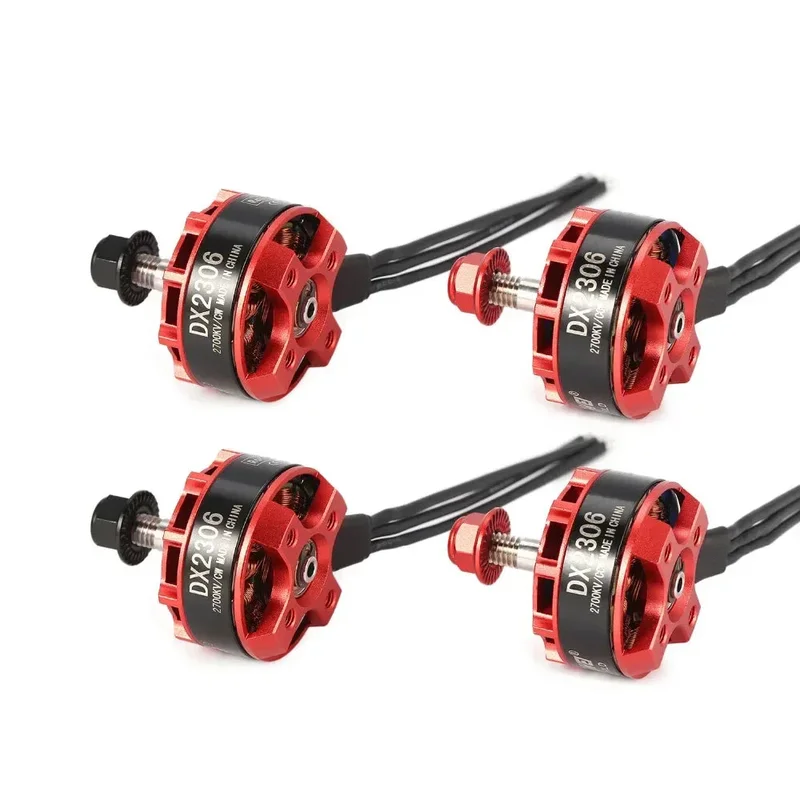

Model: DX2306 2700KV Motor
KV(RPM/Volt): 2700KV
Battery (Cell Lipo): 2-4S
Suggested Prop: 5045.4045
No. of stator arms: 12
No. of rotor poles: 14
Length: 33.5mm
Width: 28.5mm
Shaft Diameter: 5mm
Item Weight: 33.5g/pcs

Note:
DX2306 2700KV Motor is four motors. 2PCS DX2306 2700KV CW Brushless Motor . 2PCS DX2306 2700KV CCW Brushless Motor

Please allow 1-3mm error due to manual measurement. make sure you do not mind before you bid.D2206: C2826:D2212:

D3536:

NEEBRC Outrunner FPV Motor D3536: 1200 KV. 11.1V. 10×6 prop. 35A load current. 1580g pull. 388W power. 4.1 g/W efficiency. 2-4S Lipo. 115g weight. Dimensions: 67.3 x 35.8 x 34.7 mm.

D2814:

Motor dimensions: 25.0. 19.0. 4-M3. 18.3. 33.8. 30.0. 3.0. M6. 44.0. 4-φ3.2. 70.0. D2814 model performance: KV 1000. 11.1V with 12×6 prop—current 35.5A. pull 2120g. power 394W. efficiency 5.4 g/W. At 14.8V with 11×7 prop—current 42.0A. pull 2160g. power 622W. efficiency 3.5 g/W. Weight roughly 106g. compatible with 3-4S LiPo cells. This motor provides detailed specifications for dimensional and operational parameters. ensuring optimal performance in various configurations.

C3542:

NEEBRC Outrunner FPV Motor C3542: 920 KV. 11.1V. 12×6 prop. 40A load. 2030g pull. 444W power. 4.6 g/W efficiency. 2-4S Lipo. 140g weight. Dimensions: 87.5mm length. 34.7mm diameter.

D4250:

NEEBRC Outrunner FPV Motor D4250: 800 KV. 18.5V. 11×5.5 prop. 48A load current. 2850g pull. 890W power. 3.2 g/W efficiency. 3-7S Lipo. 210g weight. Dimensions: 44mm diameter. 80.5mm length.

D2306:

NEEBRC Outrunner FPV Motor. D2306-2300KV. red and black design with three wires each.
