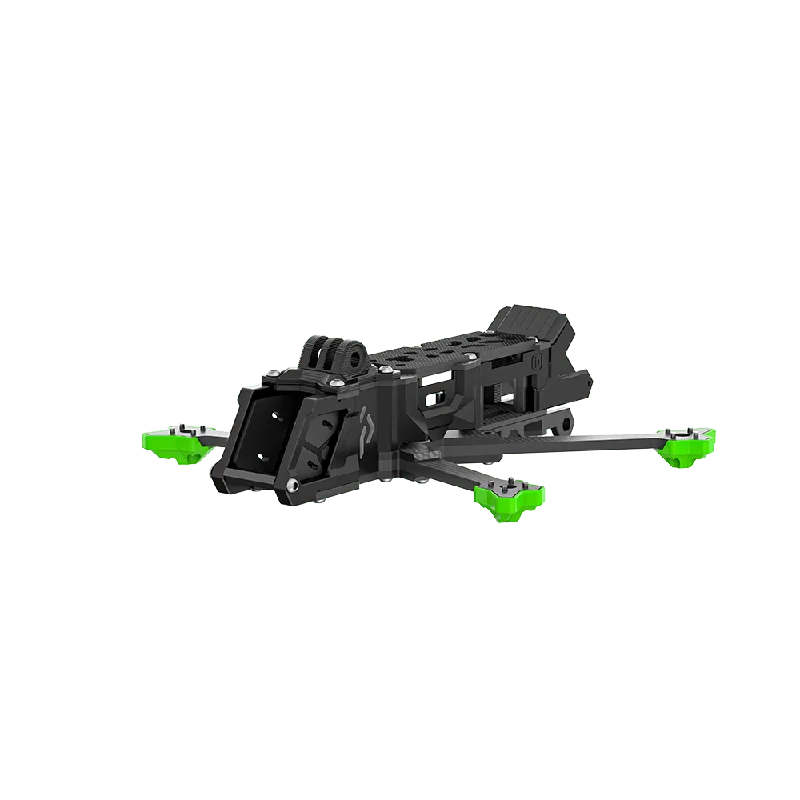

Nazgul Evoque F4 O4 Frame Kit

Description

Gone are the days of dirty and grass-stained electronics after a crash. Nazgul Evoque F4 minimizes contamination on your flight controller and ESCs, warding off failures and short circuits. It’s engineered with strategic airflow to maintain cool and clean components without compromising on weight or performance. Boasting superior performance, a lighter build, and a more compact design. Additionally, it now supports the DJI O4 Pro Air Unit for an enhanced visual experience.

Features:

O3 to O4 was upgraded for the DJI O4 Pro Air Unit:

New Camera Mount for DJI O4 Pro Air Unit

New Silicone side panels

New Dual Antenna TPU for DJI O4 Pro Air Unit

Different Screws

Specifications:

Product Name: Evoque F4 O4 Frame Kit

Geometry model: Deadcat

Frame wheelbase: 185 mm (DeadCat)

Frame Dimension: L149*W110*H36 mm (DeadCat)

Arm Thickness: 4mm

Bottom Plate Thickness: 3mm

Top Plate Thickness: 2mm

Upper Plate Thickness: 3mm

Max Flight Stack Height: 23mm

Max VTX Height: 23mm

Flight Stack Mounting: 20*20/Φ3mm

VTX Mounting: 25.5*25.5/Φ2mm

Motor Mounting: 12x12mm/φ2mm

Weight: 169g±5g

Compatibility: DJI O4 Pro Air Unit/DJI O4 Air Unit/Vista HD/BLITZ Whoop 1.6W VTX

Packing List:

1 x Evoque F4 O4 Frame Kit

1 x TPU Set

1 x GoPro TPU Base Mount

1 x Screw Bag

1 x Anti-slip Battery Pad

2 x Battery Strap

Tolerance Note

Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1m
