Description

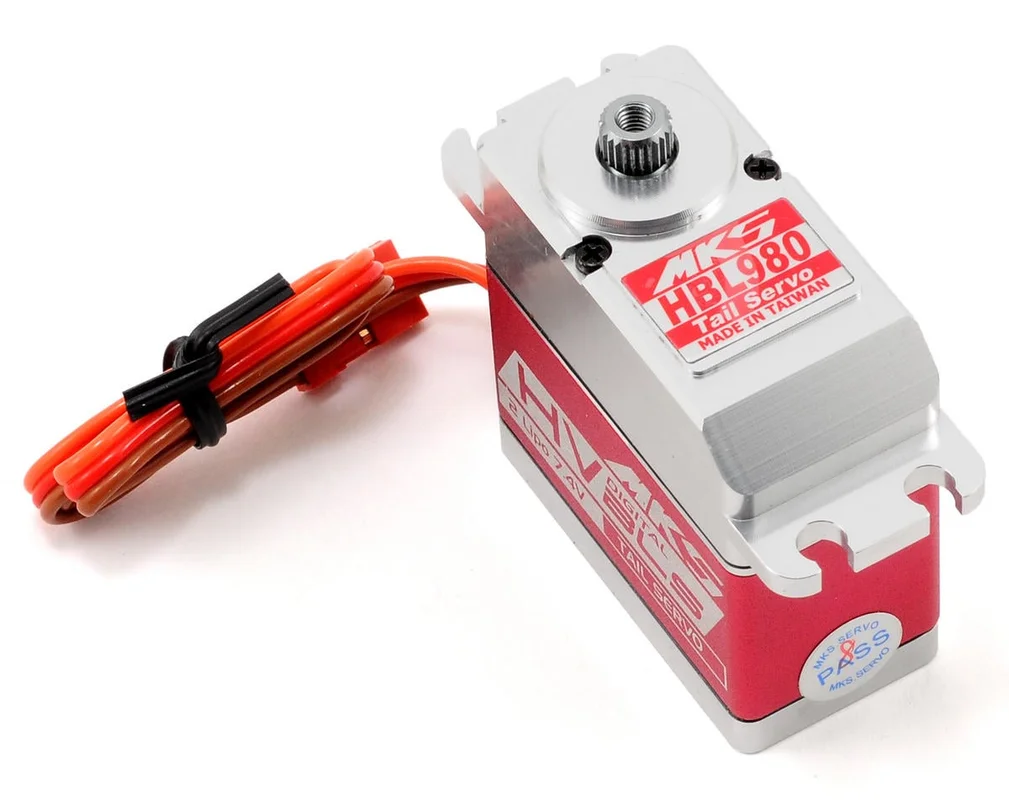

This is the MKS HBL980 Brushless, Titanium Gear, High Speed, High Voltage Digital Servo.
HBL-980 Specifications:
- Dead band: 0.0008ms (Default)
- Control System: +Pulse Width Control
- Working frequency: 760μs / 560hz
- (RX) Required Pulse: 3.5 ~ 7.2 Volt Peak to Peak Square Wave
- Operating Voltage: 6.0 ~ 7.2 V DC
- Operating Temperature Range: -10 to + 60 Degree C
- Operating Speed (6.0V): 0.04 sec/60° degrees at no load
- Operating Speed (7.4V): 0.036 sec/60° degrees at no load
- Stall Torque (6.0V): 62.5 oz/in (4.5 kg.cm)
- Stall Torque (6.0V): 77.77 oz/in (5.6 kg.cm)
- 360° Modifiable: NO
- Motor Type: Brushless Motor
- Potentiometer Drive: Indirect Drive
- Bearing Type: Dual Ball Bearings
- Gear Type: Titanium Gears
- Programmable: NO
- Connector Wire Length: 24.0cm (9.4″)
- Dimensions: 40x20x40mm (1.57×0.79×1.50″)
- Weight: 70.2g (2.48 oz)
This product was added to our catalog on August 16, 2011
