Menace RC PicoPatch Antenna 5.8Ghz RHCP Polarized Receiver Patch – MyFPV

Description

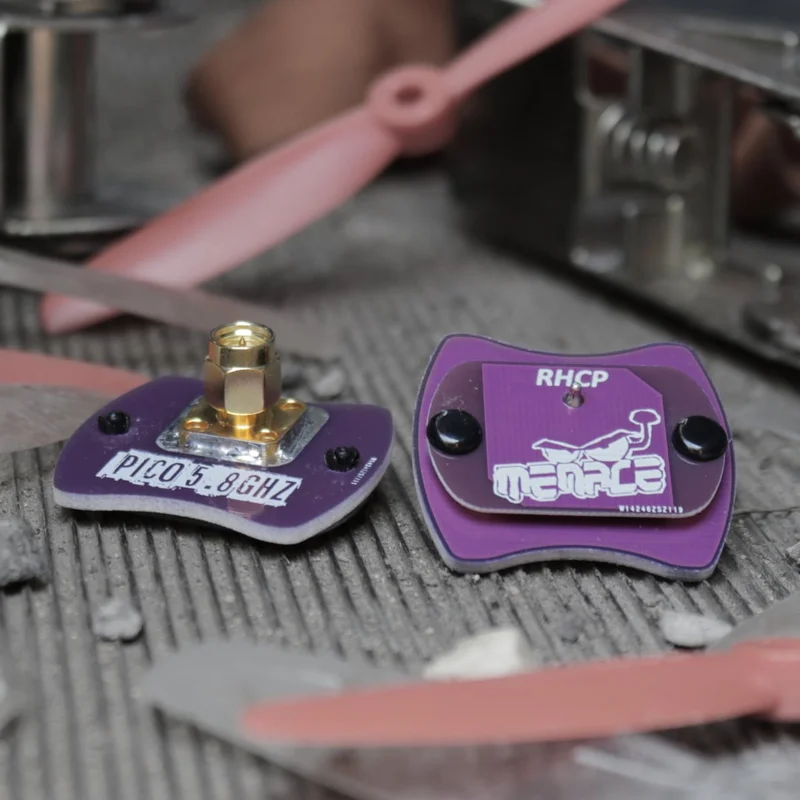

Menace RC PicoPatch Antenna 5.8Ghz RHCP Polarized Receiver Patch

Check out all of our Menace Products!

We also have this antenna in LHCP!

The PICOpatch antenna is our smallest receiving patch that is big in performance, perfect partnering with a circular polarized Omni-style transmitter antenna.

Features

• Highest Sensitivity for increased range
• Ergonomic design to fit diversity modules on goggles
• Can stay on your goggles in the carry case.
• 5.8ghz Frequency Bands Compatible
• Circular Polarized for left or right hand
• Designed for goggles or base stations.
• Great for diversity setups.

Specification

• Frequency Range: 5645 – 5945 Mhz
• Gain: 9.4 dBi
• Beam Width: 61° at -3db points
• (Check polar plot comparison invader actual angular db)
• Left or Right Hand Circular Polarised (LHCP or RHCP)
• SMA Connector (Fits Fatshark Goggles)
• Dimensions: 37.0mm x 33.6mm x 19.2mm
• Weight: 10 grams

Real World

• 25mW Range tested to 1.33km
• 60% increase in range over a 5db patch
• 20% increase in range over a 8db patch
• 38% increase range over the Invader patch
• Reduced multipath propagation compared to 360 degree omni style receiving antenna’s.
