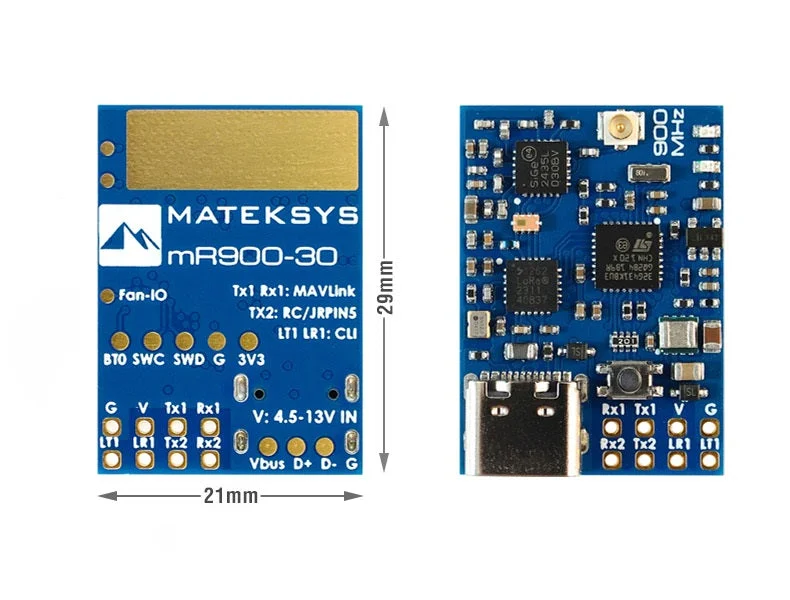

Matek mR900-30 mLRS MAVLink 900MHz Receiver

Description

The Matek mR900-30 mLRS MAVLink 900MHz Receiver is a top-of-the-line choice for long-range RC control. Featuring LORA technology, expect an exceptional RC link with bi-directional MAVLink. This receiver offers reliable and precise control for any drone or RC vehicle. Experience the benefits of advanced communication and reduce the risk of signal loss with this expertly designed receiver.

Specifications:

• STM32G431KB,  mLRS firmware
• LoRa SX1262 with TCXO
• PA/LNA SE2435L
• RF Frequency: 900MHz (868MHz, 915MHz FCC)
• 915MHz RF power: 21dBm(min) / 22dBm / 24dBm / 27dBm / 30dBm(1000mW)
• 868MHz RF power: 24dBm(min) / 24dBm / 24dBm / 27dBm / 30dBm(1000mW)
• Antenna connector: IPEX MHF-1
• TX1/RX1: Bi-directional Serial MAVLink
• TX2: RC out(CRSF or SBUS)
• one button for DFU mode and Bind

• Power supply: 4.5-13V DC /olliw42/mLRS/tree/main/firmware/pre-release-stm32
• Targets:
  • RX Receiver: rx-matek-mr900-30-g431kb
  • TX module mode: tx-matek-mr900-30-g431kb-default
  • TX SiKtelem mode: tx-matek-mr900-30-g431kb-siktelem

Includes:
1x Matek mR900-30 mLRS MAVLink 900MHz Receiver
1x IPEX MHF1 Dipole Antenna, 8cm
1x Heatsink 20*20*6mm
