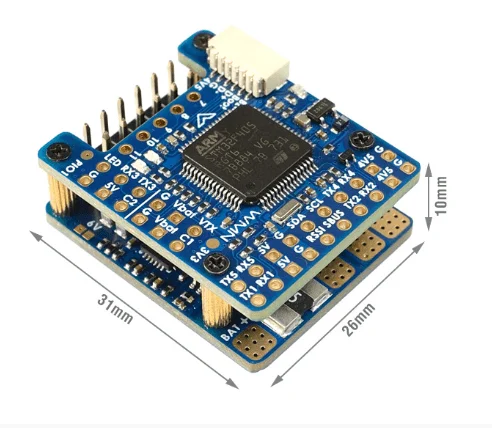

Matek F405-WMN Flight Controller

Meet the Matek F405-WMN (Wing Mini), a flight controller that packs the immense capability of a full-sized wing board into an ultra-compact form factor. This powerful FC is the perfect solution for builders of small to medium-sized FPV wings and planes who want advanced features like INAV or ArduPilot navigation without the bulk. It’s a feature-rich drone part for a clean and sophisticated fixed-wing build.

Full-Size Features, Mini Footprint

The F405-WMN is a marvel of miniaturization. On its tiny 22x22mm mounting platform, it boasts an incredible 12 PWM outputs and 5 hardware UARTs. This massive amount of connectivity allows you to control complex fixed-wing setups with multiple servos for ailerons, flaps, and gimbals, while still having plenty of ports for your GPS, receiver, and other peripherals.

Powerful, Dedicated Servo Power

A standout feature is the powerful and dedicated BEC for your servos. It provides a robust 5A of current, switchable between 5V and 6V, to reliably power all your control surfaces without causing brownouts that could jeopardize your flight controller. The board also includes a switchable Vbat output for your VTX and camera, allowing you to cut power remotely.

Optimized for INAV & ArduPilot

Powered by a reliable STM32F405 MCU and equipped with modern sensors like the ICM42688-P gyro and SPL06-001 barometer, this flight controller is perfectly suited to run advanced navigation firmware. Unlock powerful features like Return-to-Home, position hold, loiter, and waypoint missions on your FPV wing with confidence.

Specifications

• MCU: STM32F405RGT6 @ 168MHz
• IMU: ICM42688-P
• Barometer: SPL06-001
• OSD: AT7456E
• Blackbox: 16MB Flash
• Input Voltage: 6-30V DC (2-6S LiPo)
• PWM Outputs: 12
• UARTs: 5
• Servo BEC: 5A, selectable 5V or 6V
• Mounting: 22mm x 22mm (M2)

What’s in the Box?

• 1x MATEKSYS F405-WMN Flight Controller
• 1x USB(Type-C)/Buzzer Extender Board
• 1x 20cm Connection Cable
• 1x Set of Dupont 2.54 Header Pins (shipped unsoldered)
