Description
SPECIFICATIONS
Brand Name: MAD COMPONENTS
Is Electric: No battery
Origin: Mainland China
Material: Metal
Recommend Age: 14+y
Use: Vehicles & Remote Control Toys
Model Number: X7229

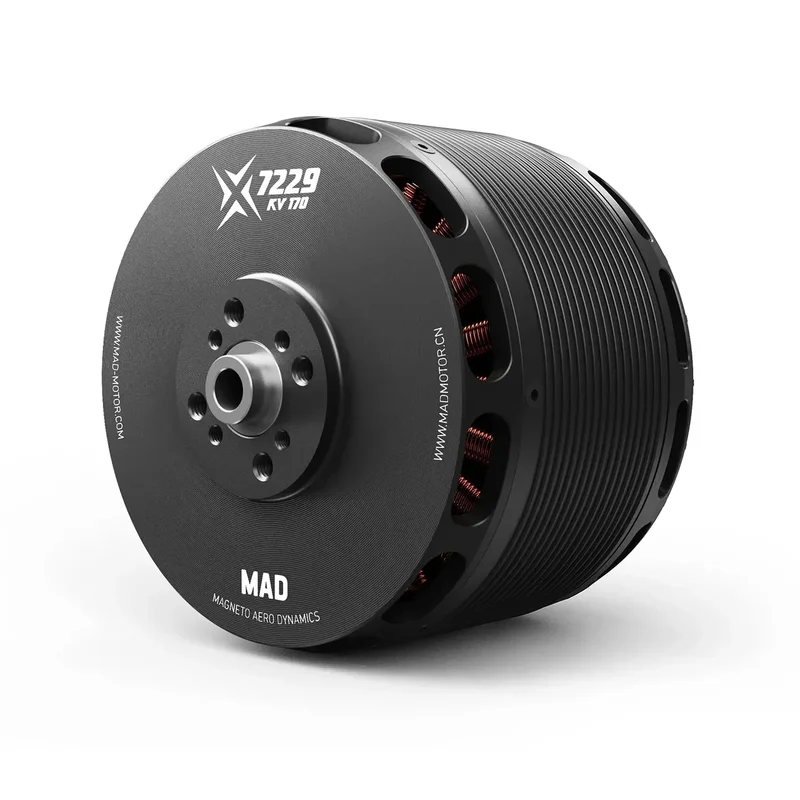

MAD X7229 VTOL Airplane Drone Motor Specifications
| Motor Model | MAD X7229 IPE V1.0 | Number of pole pairs | 11 |
| Stator | Anticorrosive | Varnished wire Degree | 220°C |
| Motor Size | D:81.1 × 71.5 mm | Motor Balance | 180°C |
| Degree of Protection | IP35 | Cable Length | 150mm (extended Enameled wires） |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:20 M3×4 / M8 Nut | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 10 mm | Motor Mounting Holes | D:36 M4×4. D:90 M4×4 |
| Bearing | 6900ZZ *3 | Disruptive test | 500 V |
MAD X7229 170KV Specifications
| Specifications | Details | Specifications | Details |
|---|---|---|---|
| RPM/V | 170 KV | Nominal Voltage | 12S lipo battery |
| No Load Current | 2.4A / 20V | Internal resistance | 16mΩ |
| Motor Weight | 867 g | Product Boxed Weight | 1274 g |
| Maximum Current | 100A | Maximum Power | 4720W |
| Maximum thrust | 18.3 kg | Maximum Torque | 5.7 Nm |
| Recommended ESC | MAD AMPX 80A (5-14S). AMPX 120A (5-14S) | Recommended Propellers | 21×10. 22×10. 24×10 |
| UAV take-off weight | 12S-24″ 28kg–Quadcopter | Single rotor take-off weight | 6kg ~ 8kg |
| 42kg–Hexacopter | |||
| 56kg–Octocopter |
Introducing the MAD X7229 VTOL Airplane Drone Motor. featuring a 12S. 170KV brushless motor suitable for 120E-170E aircraft. This professional-grade edition has a recommended maximum thrust of 18.3kgf and is optimized for energy efficiency with an impressive 89% max efficiency. Key specifications include:* Maximum current: 24×10 amps* Input power: up to 41
