Description
Overview
Lightweight 14.7g. thrust up to 3.6kg. optimized for 5000–8000RPM. 6mm mounting hole. 13×4.4” CW/CCW pair.
Key Features
-
Made from uni-/bi-directional carbon fiber prepreg with balsa core
-
Super fast response & high rigidity
-
Optimized performance at low RPM
-
Matt finish over woven carbon fiber
-
Excellent efficiency with max thrust up to 1807g at 7980RPM
-
Designed for competitive performance at a competitive price
Recommended Configuration
| Propeller | ESC | Motor | Throttle | Thrust (g) |
|---|---|---|---|---|
| FLUXER MATT PRO 13×4.4 IN PROP | AMPX 30A / 40A PRO | MAD 3506 EEE KV400 | 50–60% | 400–600g / Motor (6S) |
| FLUXER MATT PRO 13×4.4 IN PROP | AMPX 30A / 40A PRO | MAD 3508 IPE KV700 | 50–60% | 550–750g / Motor (4S) |
Performance Test Data
| Thrust (gf) | Torque (N·m) | Output Power (W) | Efficiency (gf/W) |
|---|---|---|---|
| 204 | 0.0 | 13.4 | 15.8 |
| 289 | 0.0 | 21.2 | 14.5 |
| 293 | 0.1 | 32.7 | 12.8 |
| 475 | 0.1 | 42.6 | 11.8 |
| 549 | 0.1 | 53.3 | 10.9 |
| 636 | 0.1 | 66.7 | 10.1 |
| 764 | 0.1 | 85.9 | 9.4 |
| 903 | 0.1 | 110.1 | 8.7 |
| 1028 | 0.2 | 133.9 | 8.1 |
| 1149 | 0.2 | 159.1 | 7.6 |
| 1278 | 0.2 | 185.3 | 7.2 |
| 1403 | 0.2 | 216.8 | 6.8 |
| 1510 | 0.2 | 248.2 | 6.4 |
| 1643 | 0.3 | 280.4 | 6.1 |
| 1807 | 0.3 | 331.8 | 5.7 |
Specifications
-
Size: 330.2 × 111.8 mm
-
Weight (Single): 14.7g
-
Material: High-quality carbon fiber + resin
-
Surface Finish: Polished/Matt
-
Working Temp: –40°C to 65°C
-
Optimum RPM: 5000–8000 RPM
-
Max Single Thrust: 3.6kg
-
Mounting Hole: 6mm
-
Storage Temp: –10°C to 50°C
-
Humidity: <85%
-
Package: Color box
What’s Included
-
2x 13×4.4” Carbon Fiber Props (1 CW + 1 CCW)
-
2x Cover Plate
-
2x Ø6/Ø4 Adapter Ring
-
4x M3*10 Hex Socket Cap Screws
Details

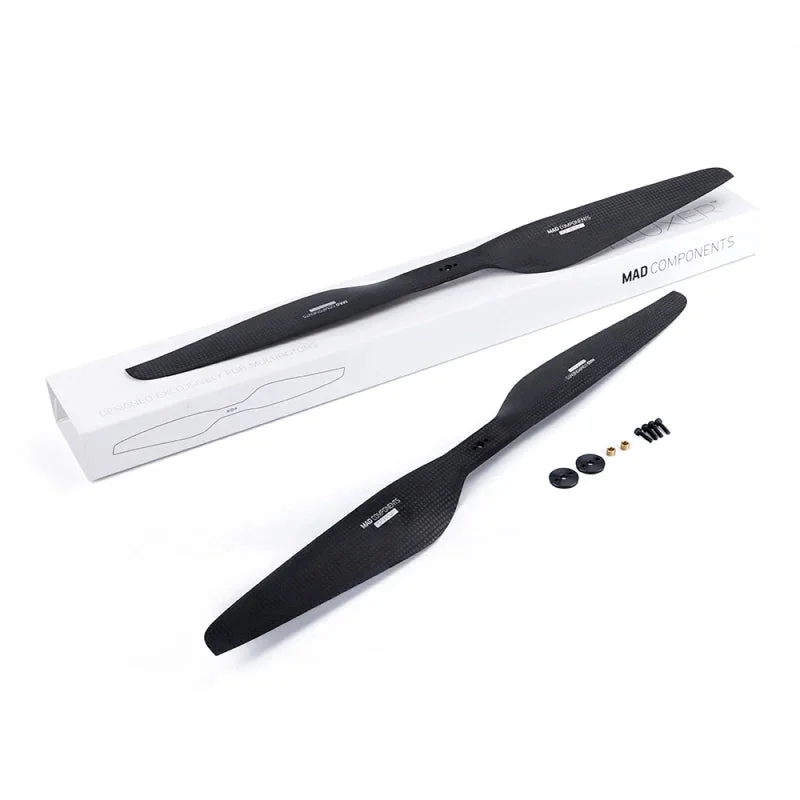

The MAD FLUXER Matt Pro 13X4.4 in PROP is a high-quality carbon fiber and resin propeller with dimensions of 330.2 x 111.8 mm. It weighs 14.7 grams and has a single thrust limitation of 3.6 kg. The working temperature range is -40°C to 65°C. and the storage temperature range is -10°C to 50°C. The optimum RPM is 5000-8000 RPM/min. Additional accessories include mounting screws. cover plates. and adapter rings. The propeller features a polished/matt surface treatment and comes in a color box package.
The table presents test data for a motor. showing its performance across various RPMs. Key metrics include thrust (gf). torque (N×m). output power (W). and efficiency (gf/W). As RPM increases. thrust and output power generally rise. while efficiency decreases. Torque remains low until higher RPMs. The data highlights the trade-off between power output and efficiency at different operating speeds.
The image provides a recommended configuration for a drone setup. including propellers. ESCs. motors. throttle range. and thrust specifications. It also lists the contents of the package. which includes 2 pieces of 13×4.4 propellers. 2 cover plates. 2 adapter rings (Ø6/Ø4). and 4 hex socket cap head screws (M3*10). The recommended motors are MAD 3506 EEE KV400 and MAD 3508 IPE KV700. with corresponding thrust ranges of 400-600g and 550-750g per motor.
