Description
Overview

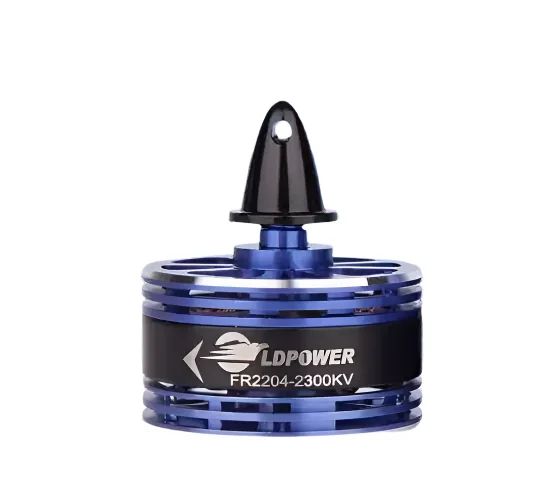

The LDPower FR2204 2300KV Brushless Motor set is a lightweight and high-efficiency option for FPV racing drones and freestyle builds. Designed for 2–4S LiPo power and compatible with 5 to 6 inch propellers. these motors deliver smooth throttle response. solid durability. and optimized performance in both acro and cinematic flying styles. Each set includes 4 motors—2 clockwise (CW) and 2 counter-clockwise (CCW)—pre-wired and ready for installation.
Key Features
-
2300KV rating optimized for 2–4S LiPo batteries
-
Stator size: 22mm x 4mm for balanced thrust and efficiency
-
Durable 3mm shaft with M5 propeller mount
-
16x19mm bottom mount pattern with 4x M3 screws
-
Lightweight design: only 24g per motor
-
Ideal for 5″–6″ propellers
-
Includes 2 CW and 2 CCW motors in a premium black box
-
Perfect fit for GEPRC. iFlight. and other 220mm–250mm FPV frames
Specifications
| Parameter | Value | ||
|---|---|---|---|
| KV Rating | 2300KV | ||
| Stator Size | 22 x 4mm | ||
| Motor Size | φ27.9 x 15.5mm | ||
| Shaft Diameter | 3mm | ||
| Weight | 24g | ||
| No-Load Current | 0.6A . All rights reserved.
