Description

JX Servo RD-C7638MI-360 38kg.cm 360 SPECIFICATIONS

Origin: Mainland China

Material: Metal

Use: Vehicles & Remote Control Toys

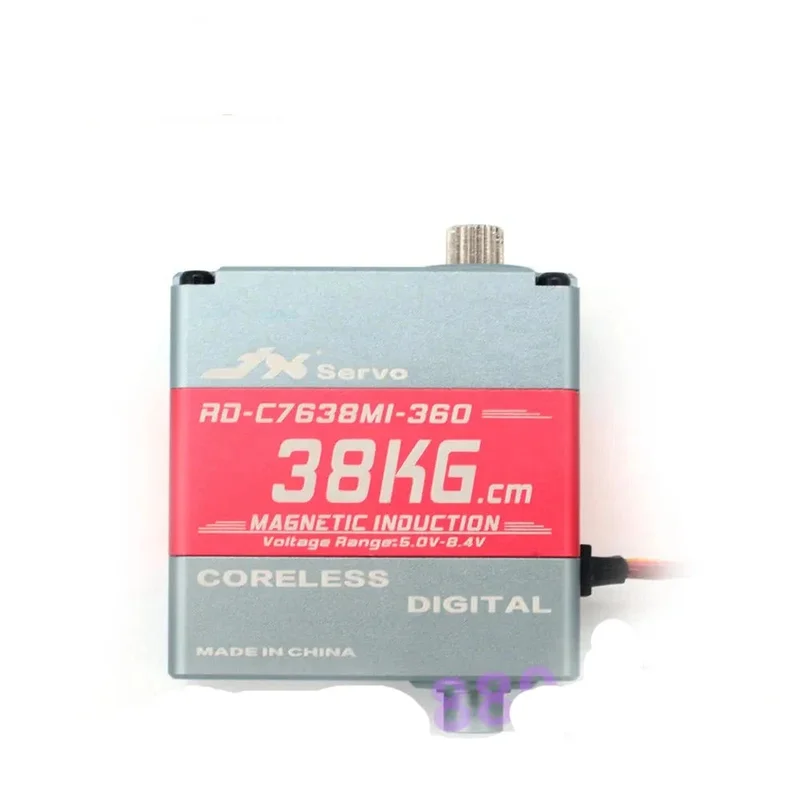

RD-C7638MI-360 38kg.cm 360 degree coreless. Magnetic induction. full CNC aluminium hulls structure RC Robot servo
:

Specification:

Dead band: 2μs
Neutral point: 1500μs
Pulse width: 500μs-2500μs
Motor: Coreless
Max angle: 360°±2°
Working frequence: 330hz
Voltage: 5.0V/7.2V/8.4V
Speed(5.0V/7.2V/8.4V): 0.14/0.12/0.10sec/60°
Stall torque(5.0V/7.2V/8.4V): 31/33.5/38 kg.cm
Demension: 40X20X40mm
Weight: 76 g
Connector Wire Length: JR 265mm
Spline Count: 25T

Feature:

Magnetic induction potentiometer
High performance robot servo
High-precision metal gears with hard anodizing
Full CNC aluminium hulls and structure
High quality coreless motor
Dual ball bearings

Package Included:

1x JX RD-C7638MI-360 Servo
