Description

JX Servo PS-5509MG  SPECIFICATIONS

Brand Name: JX Servo

Origin: Mainland China

Material: Composite Material

RC Parts & Accs: Servos

Size: 40.5X20.2X38mm

For Vehicle Type: Cars

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Analog Servo

Remote Control Peripherals/Devices: Analog Servo

Tool Supplies: Battery

Model Number: PS-5509MG

Four-wheel Drive Attributes: Analog Servo

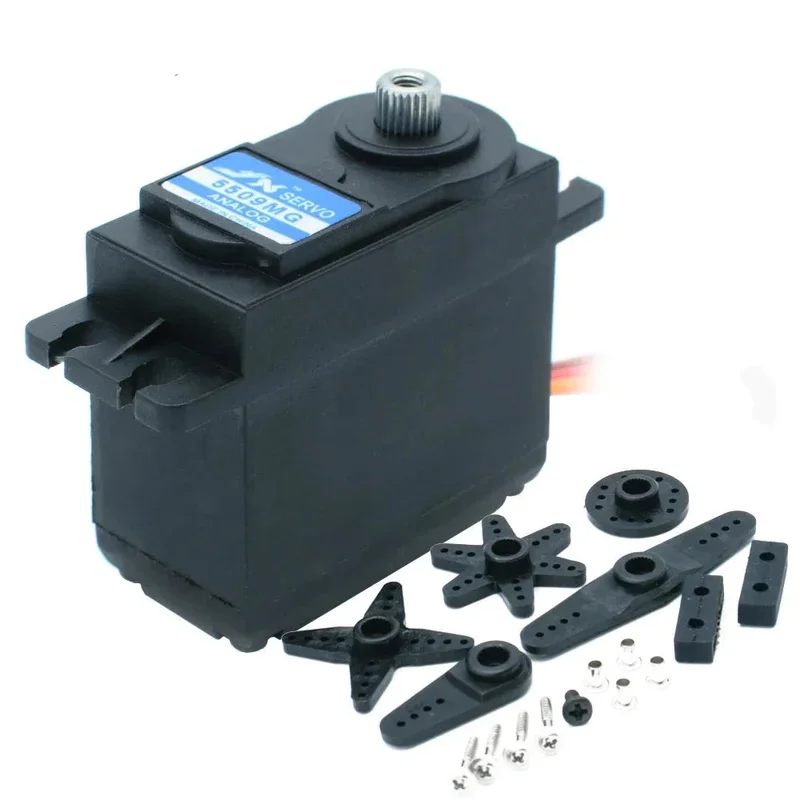

JX PS-5509MG 4.8-6.0V 9.35kg Metal Gear Analog Core Servo

Feature:
– High-precision Taiwan-made metal gears
– Dual ball bearings

Specifications:
Dead band: 7μs;
Working frequence: 1520μs / 330hz;
Operating Speed (4.8V): 0.15 sec/60°;
Operating Speed (6V): 0.13 sec/60°;
Stall Torque (4.8V): 8.65 kg.cm (120.15 oz/in);
Stall Torque (6V): 9.35 kg-cm (129.88 oz/in);
Dimensions: 40.5X20.2X38mm/1.59X0.80X1.49 in;
Weight: 55.6 g (1.96oz);
Connector Wire Length: JR 265 mm (10.43in);
Bearing: 2BB;
Tooth Count: 25;
