Description

JX Servo PS-4503HB  SPECIFICATIONS

Brand Name: U-Angel-1988

Origin: Mainland China

Material: Composite Material

Recommend Age: 14+y

RC Parts & Accs: Servos

Size: 40.5X20.2X38mm

For Vehicle Type: Cars

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Analog Servo

Remote Control Peripherals/Devices: Analog Servo

Tool Supplies: Battery

Model Number: PS-4503HB

Four-wheel Drive Attributes: Analog Servo

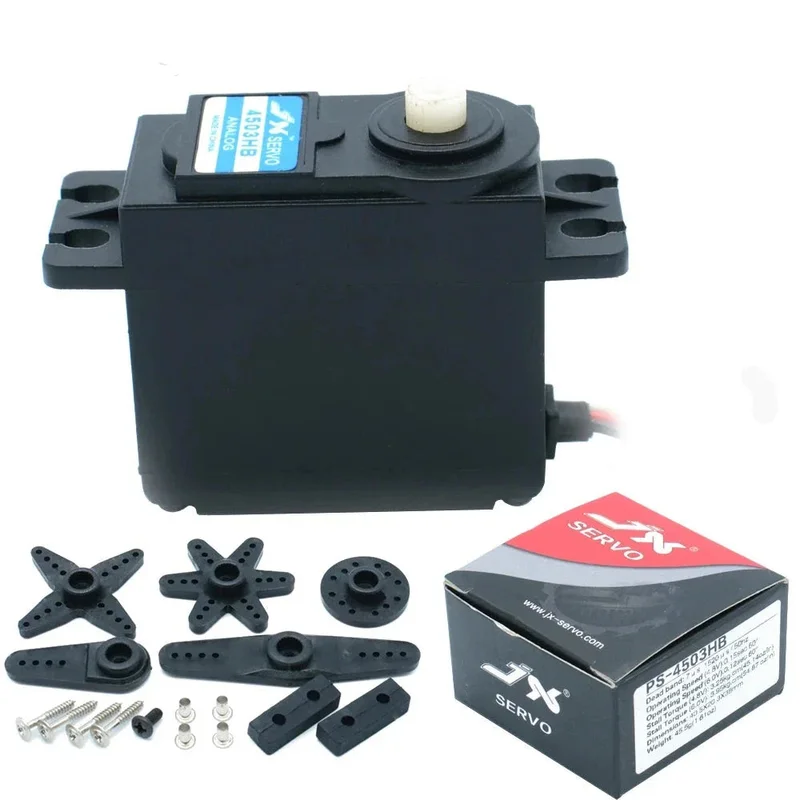

JX PS-4503HB 4.8-6.0V 45g 3.9kg Plastic Gear Analog Servo JR Plug

Features:
-Standard size analog servo;
-Plastic gear train;
-Dual ball bearing supported output shaft;
-Fast 0.12sec transit time;

Specification:
Brand: JX;
Model: PS-4503HB;
: 45g 3.9kg Analog Plastic gear servo;
Dead band: 7μs;
Working frequence: 1520μs / 330hz;
Operating Speed (4.8V): 0.15sec/60°;
Operating Speed (6V): 0.12sec/60°;
Stall Torque (4.8V): 3.25kg.cm (45.14oz/in);
Stall Torque (6V): 3.95 kg-cm (54.87 oz/in);
Dimensions: 40.5X20.2X38mm;
Weight: 45.5 g (1.61oz);
Connector Wire Length: JR 265 mm;
