Description

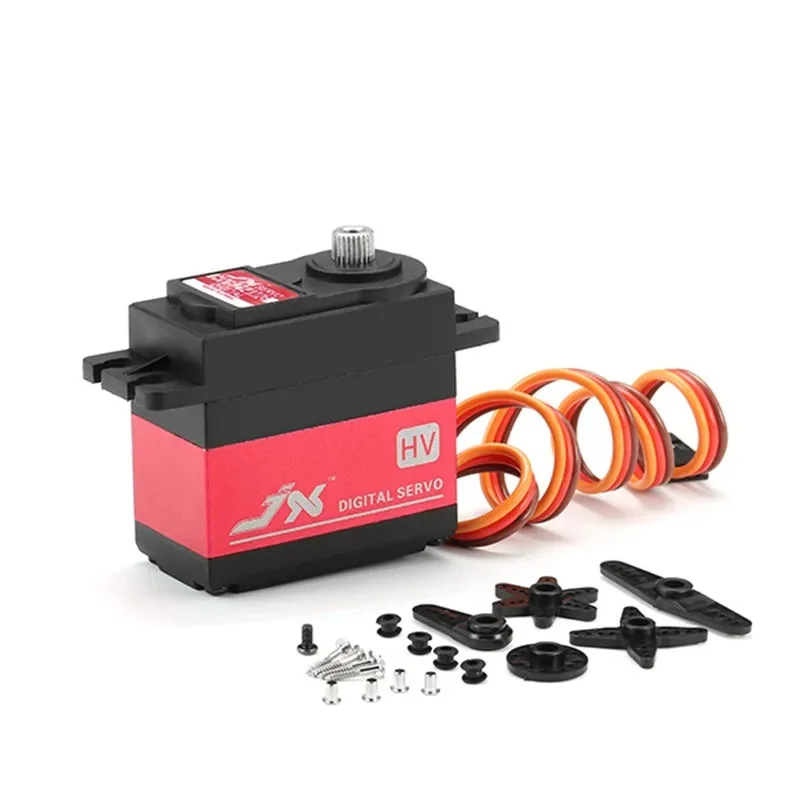

JX Servo PDI-HV6214MG SPECIFICATIONS

Brand Name: JX Servo

Origin: Mainland China

Material: Metal

RC Parts & Accs: Servos

Size: RC14436

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: servos

Remote Control Peripherals/Devices: Servos

Tool Supplies: servos

Quantity: 1 pcs

Technical parameters: Value 2

Model Number: PDI-HV6214MG

Four-wheel Drive Attributes: servos

Wheelbase: Screws

— High performance digital standard servo– High-precision Taiwan-made aluminium gears with hard anodizing– CNC aluminium middle Shel– Dual ball bearingsSPECIFICATIONS:Dead band: 2μs  Working frequence: 1520μs / 330hzMotor: high quality core motorOperating Speed (6V): 0.18sec/60° Operating Speed (7.4V): 0.16 sec/60°Stall Torque (6V): 12.8kg.cm (177.7oz/in)Stall Torque (7.4V):  14.6 kg-cm (205.53oz/in)Dimensions: 40.5X20.2X38mm/1.59X0.80X1.49inWeight: 62g (2.18oz)Connector Wire Length: JR  265 mm (10.43in)Bearing: 2BB ​
