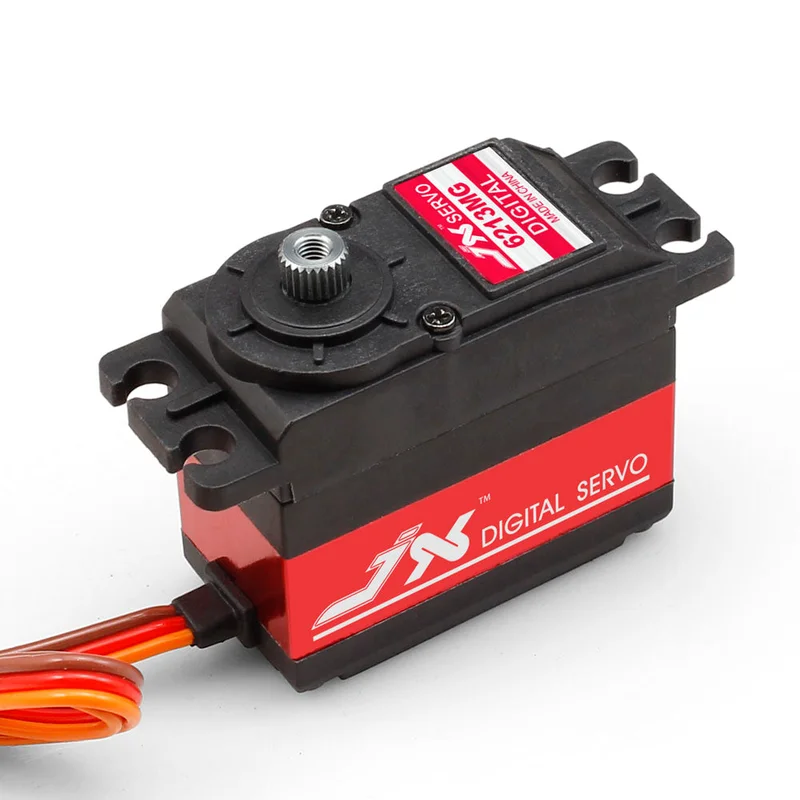

JX Servo PDI-6213MG – 6V 13KG 0.18sec/60° 62g High Precision Metal Gear Digital Coreless Standard Servo

Description

Detailed introduction

FEATURE:
— High performance  digital  standard servo
— High-precision Taiwan-made aluminium gears with hard anodizing
— CNC aluminium middle Shell
— Dual ball bearings

SPECIFICATIONS:
Dead band: 2μs
Working frequence: 1520μs / 330hz
Motor: high quality core motor
Operating Speed (4.8V): 0.20sec/60°
Operating Speed (6V): 0.18 sec/60°
Stall Torque (4.8V): 11.75kg.cm (163.21oz/in)
Stall Torque (6V):  13.06 kg-cm (181.40 oz/in)
Dimensions: 40.5X20.2X38mm/1.59X0.80X1.49in
Weight: 62g (2.18oz)
Connector Wire Length: JR  265 mm (10.43in)
Bearing: 2BB
