Description
Great candidate for your TinyTrainer!
Specifications
- Model: GHF722AIO-HD ESC-40A

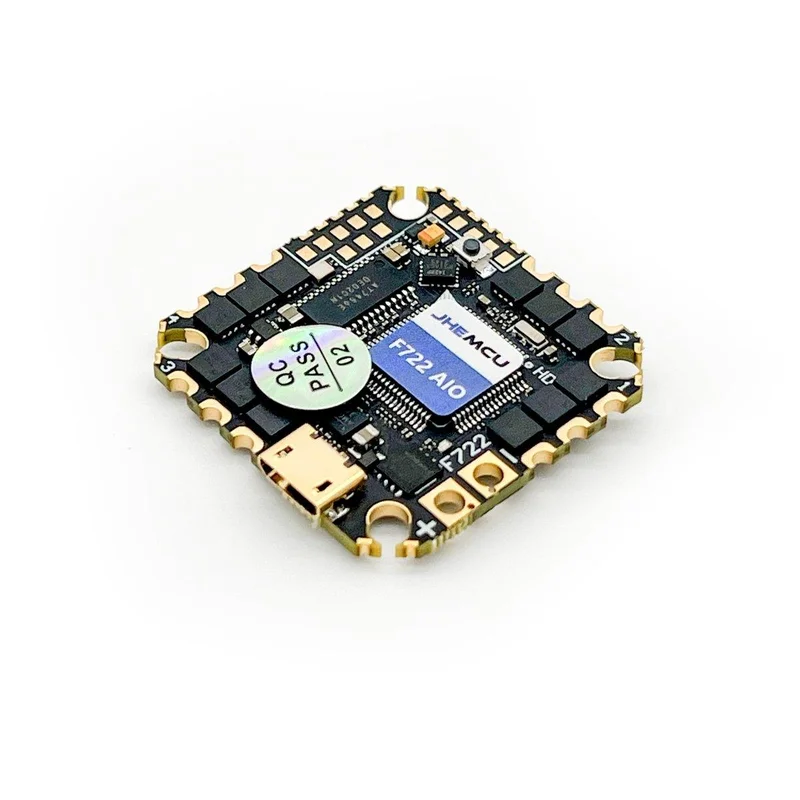

- Item Name: JHEMCU GHF722AIO- HD 40A F722 Flight Controller STM32F722 W/5V 10V BEC Gebaut-in 40A BLHELI_S 2-6S 4in1 ESC for FPV Racing Drone
- Dimensions: 33.5mm x33.5mm
- CPU:STM32F722
- Mounting Hole: 25.5×25.5mm
- Weight: 7.8g
- Gyro: ICM
- USB: MicroUSB and Included TYPE-C w/ Adapter Board
- Firmware: JHEF7DUAL, Betaflight 4.3.0+ Required
- Black box: 16MB
ESC Specifications
- Con. Current: 40A
- Burst Current: 50A
- Input Voltage: 2-6S Lipo
- Firmware: BLHELI_S/BluJay
- Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
Includes
- 1 x JHEMCU GHF722AIO-HD Board
- 1 x 14AWG Red Cable
- 1 x 14AWG Black Cable
- 1 x 470UF 35V Capacitor
- 4 x M2 Rubber Shock Absorber
- 1 x XT60H Plug
- 1 x USB-C Module
- 1 x Solder Practice Board
