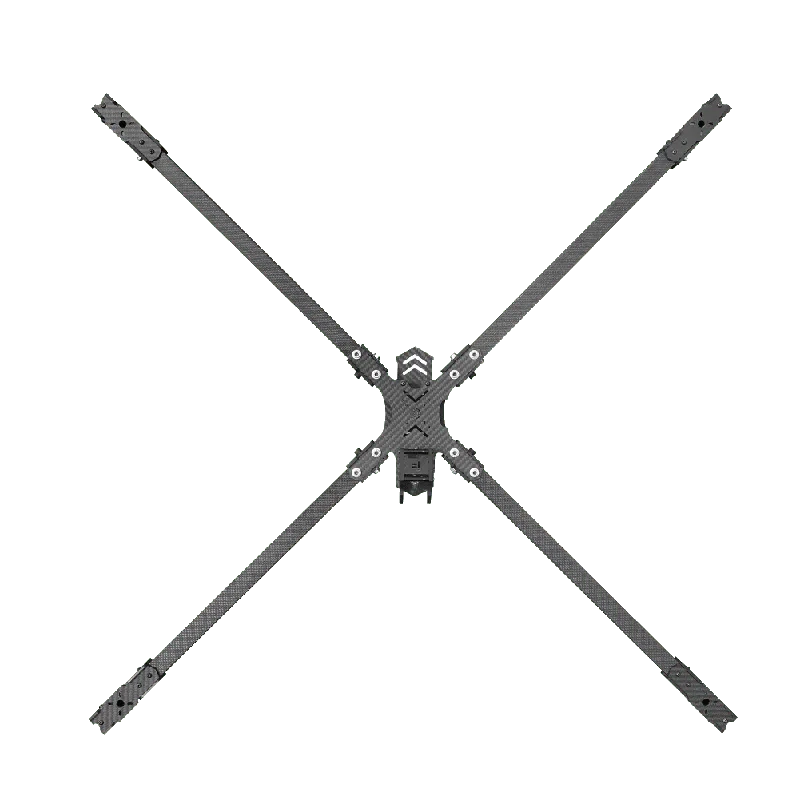

iXC15 X-CLASS Frame Kit

Description

The iFlight iXC15 X Class racing frame is built for pilots who demand maximum performance beyond mini-quad limits. Its true X design made from pure 3K carbon fiber ensures outstanding rigidity, agility and durability at high speeds. The Power-Lock arm system with reinforced motor bases reduces weight while allowing fast installation and easy field repairs. With generous space for electronics and an included GoPro mount, the iXC15 is engineered for competitive X Class racing and long-term reliability.

Features

Ture X design, pure 3K carbon fiber.

Comes with GoPro mount, ample equipment installation space;

Omnidirectional arm locking structure to ensure the connection strength between the arm and the body;

The unique motor base design ensures installation speed and high strength;

Specifications

Product Name：iXC15 X Class Frame

Wheelbase: 950mm

Carbon tube arm dimension：20mm*20mm*425mm

Tube：20mm（out OD）,18mm（inner OD）

Singles Tube Length：375mm

Arm Thickness: 6mm

Bottom Plate Thickness: 3mm

Top Plate Thickness: 2mm

Upper Plate Thickness: 3mm

Camera Plate Thickness: 3mm

Motor Mounting：19x19mm – 25*25mm

VTX Mounting：30.5*30.5mm / 20*20mm

Weight: 643rams (Included no TPU Parts)

Packing List

1 x iFlight iXC15 950mm X CLASS Racing Frame

Note

Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
