Immersion RC Ghost Next Gen 2.4GHz Radio System Bundle

Description

From the engineers who changed the Analog FPV world with rapidFIRE, comes the Ghost to set a new bar for R/C Control technologies. Go faster, further, safer.

Three years in the making, countless fun-filled hours of testing by the world’s fastest pilots.

Ghost is a 2.4GHz Radio Control system for R/C Model Control, with a focus on the FPV community.

Designed for both reliable control at extreme range, and extremely low latency with best-in-class frame rate for the Race circuit.

Features:

•  2.4GHz ISM Band
•  ‘JR’ Compatible Transmitter with Diversity Transmission
•  One Of The Smallest Receivers On the Market
•  Chirp Spread Spectrum, with Adaptive FHSS
•  Crazy Race Performance, 222.22Hz updates
•  ~4ms End to End Latency, with OpenTx Integration
•  More range than most pilots will ever need

Specifications:

• Frequency Range: 2406 – 2479MHz
• Modulation: Chirp Spread Spectrum + Adaptive FHSS
• Binding: Bidirectional with confirmation and protocol negotiation
• RF Profiles: Race, Pure Race, ‘Normal’, and Long Range, more to come

JR Module Transmitter Specifications:

• Uplink Tx Power: 16uW – 350mW (+/- 0.5dB)
• Frame Rate: 222.22Hz (purerace), 166Hz (race), 62Hz (normal), 15Hz (long-range)
• Format: Standard JR Module: tested with FrSky Taranis™, and RadioMaster™ radios
• Compatibility: Any R/C Tx which accepts JR modules (Taranis, etc. )
• Serial Formats: SBus, GHST 1 – Auto-Sense
• Firmware: USB Upgradable(with OTA updates for receivers)
• Power Supply: 6V-20V, 1.75W @ 400mW, ~250mA at 7.4V

Atto Receiver Specifications:

• Downlink Tx Power: +13dBm
• Sensitivity: -117dBm in Long Range mode
• Serial Formats: SBus, SBus-Fast (200k), SRXL-2 (400k),  GHST, SBus Inverted
• Firmware: Over-the-air (OTA) upgradable
• Power Supply: 5V recommended, as low as 3.3V tolerated
• vTx control: Tramp control from ‘T’pin on Rx, regardless of selected serial format
• Dimensions: 14.8mm x 11.5mm, 0.6g (w/o antenna)

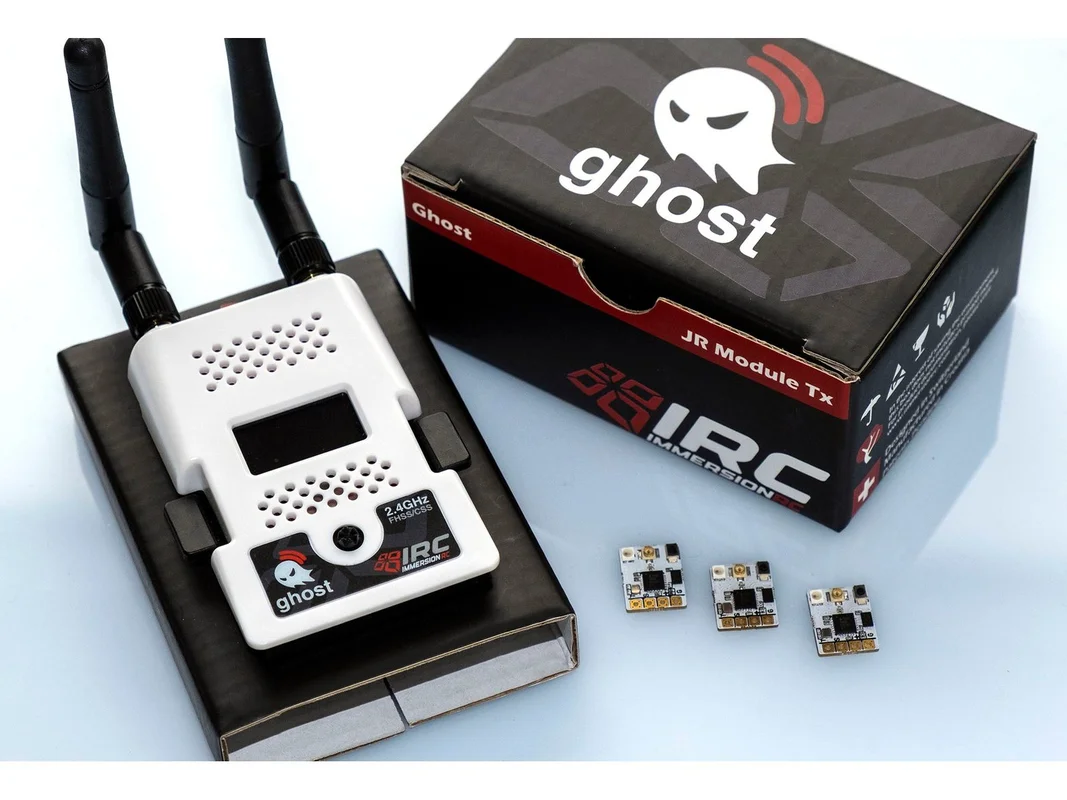

Includes:
1x Immersion RC Ghost Next Gen 2.4GHz JR Module
2x Ghost 2.1dBi Dipole Antennas
3x Átto Receiver
3x uT Antenna

Download Manual
