Description
Overview

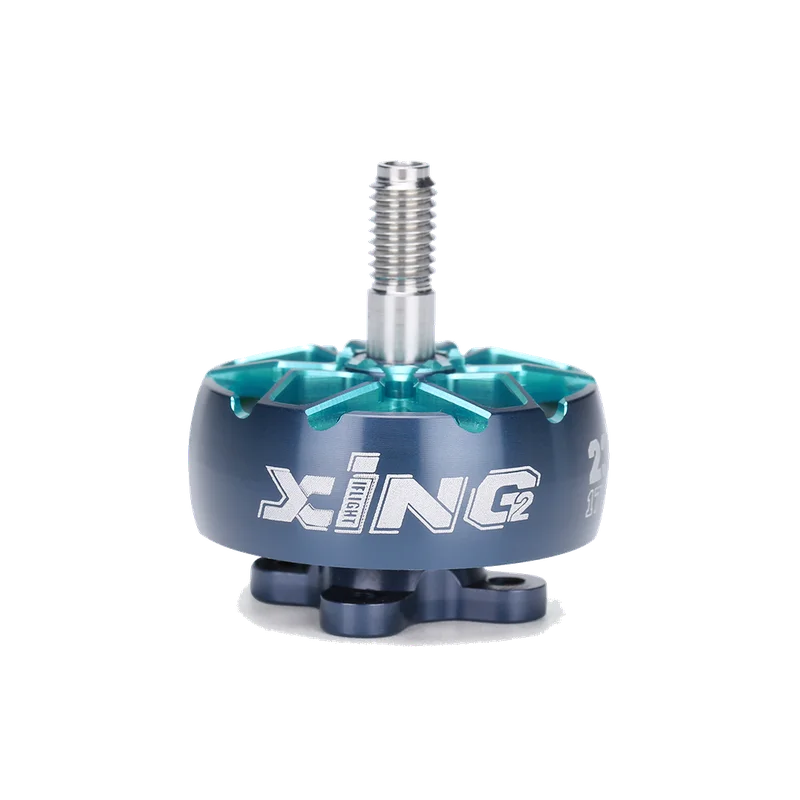

The iFlight XING2 2306 Brushless Motor is a premium upgrade to the original XING series. purpose-built for 5-inch FPV freestyle and racing drones. Available in 1755KV (6S) and 2555KV (4S) options. the XING2 pushes the limits of responsiveness. efficiency. and durability.
With center-slotted N52H curved arc magnets. a robust Unibell 7075 aluminum bell. and ultra-smooth NSK 9x4x4 bearings. this motor ensures fast PID loop response. higher magnetic flux. and increased flight control precision. It’s the perfect powertrain for demanding pilots who want that locked-in feel.
Key Features
-
Designed for 5-Inch FPV Drones – Perfect balance of power and efficiency for freestyle or racing builds.
-
5mm Titanium Alloy Shaft – Strong. crash-resistant and lightweight.
-
Unibell 7075 Aluminum Bell – Durable and aerodynamic.
-
NSK 9x4x4 Bearings – High-precision. smooth operation with extended lifespan.
-
Center-Slotted N52H Arc Magnets – Improved throttle response and torque.
-
O-ring Bearing Gap Protection – Keeps debris out and performance consistent.
-
Dynamically Balanced Rotor – Reduced vibration for better flight stability.
-
160mm 20AWG Motor Leads – Pre-soldered silicone wires for easy install.
Specifications
| Parameter | 1755KV | 2555KV |
|---|---|---|
| Input Voltage | 6S (24V) | 4S (16V) |
| Weight (with wires) | 32.5g | 32.5g |
| Interphase Resistance | 76.4mΩ | 50mΩ |
| Peak Current | 36.21A | 51.3A |
| Max Power | 869W | 820.8W |
General Build & Dimensions
-
Motor Dimensions: φ30 × 18.7mm
-
Shaft Diameter: 5mm
-
Shaft Protruding Length: 13.5mm
-
Mounting Pattern: 16×16mm. M3 holes
-
Rotor Design: Unibell
-
Magnet Type: N52H Curved Arc
-
Configuration: 12N14P
-
Lead Wire: 160mm / 20AWG
-
Winding: Single-strand copper
-
Bearing Type: NSK
-
Bearing Spec: φ9×φ4×4mm
Recommended Pairings
To get the most out of the XING2 2306 motor. here are optimal component pairings:
Recommended ESCs
-
iFlight BLITZ E45 / E55 4-in-1 ESC
-
T-Motor F45A / F55A Pro II
-
Spedix IS45 45A 4-in-1 ESC
Choose 45A–55A ESCs with BLHeli_32 firmware for optimal performance. especially for aggressive freestyle.
Compatible 5-Inch FPV Frames
-
iFlight Nazgul Evoque F5
-
iFlight Chimera 5 LR
-
GEPRC Mark5
-
Axisflying Manta5 SE
-
TBS Source One V5
All frames listed support 16x16mm motor mounting patterns and 5-inch propellers.
Recommended Propellers
-
Gemfan 51466 / 51477
-
HQProp 5×4.3×3 V1S
-
Dalprop Cyclone T5143
Use high-efficiency 5-inch tri-blade props for freestyle control and torque.
Packing List
-
1 × XING2 2306 Brushless Motor (KV optional)
-
4 × M3×8mm Mounting Screws
-
1 × M5 Flange Nut
Test Report
