Description

SPECIFICATIONS

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Tool Supplies: Battery

Technical parameters: Value 2

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Motors

Quantity: 1 pcs

Origin: Mainland China

Model Number: XING-E Pro 2306

Material: Metal

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Brand Name: IFLIGHT

：

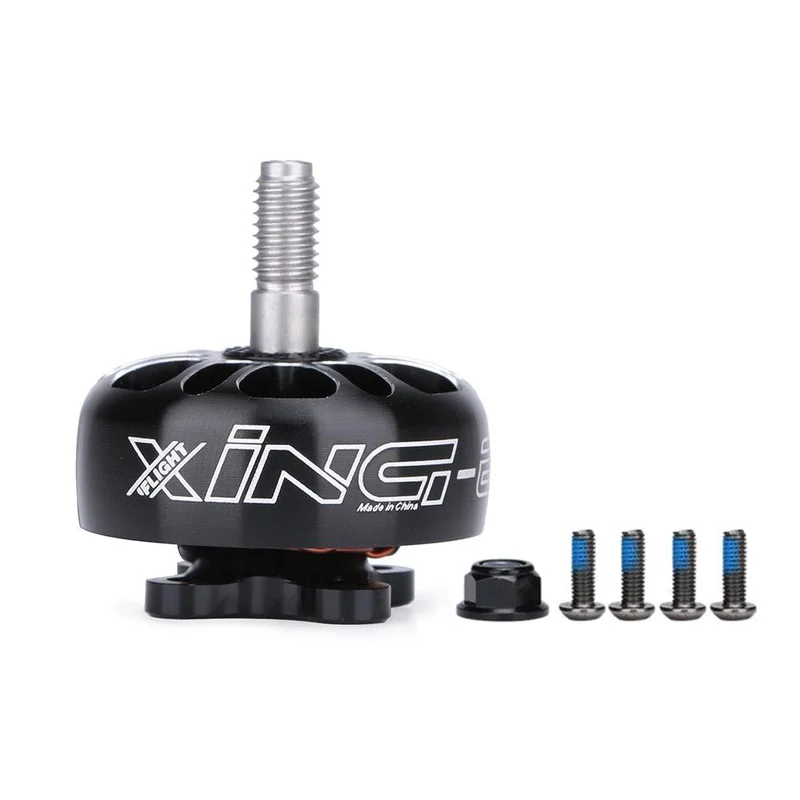

• XING-E Pro series are very strong and powerful FPV motors for FPV racing. great value choice with well known XING performance.focuses on quality. the XING-E series affordable motors that are strong and durable.

• This 2306 sized Drone Motor features a high-strength 4mm steel hollow shaft. Single strand windings for performance. M3 shaft screw. and larger 9x4x4mm NSK bearings.

Features:

• High-strength 4mm Steel shaft

• N52SH High-temperature magnets. NSK bearings

• 16x16mm hole pattern

• Single strand copper winding

• 6061 CNC machined aluminum top and base parts

• Hex bolt shaft set screw

Specifications:

• Configuration: 12N14P

• Stator Diameter:24mm

• Magnets: N52SH Curved

• Bearing Size: 9x4x4

• Shaft Diameter: 4mm / Steel

• Base Mounting Pattern: 16x16mm M3 Thread

• Motor Dimension:29.5×18.7mm

• Weight:33.1g (150mm wires)

• Idle Current @12.6v (Io):2.1A

• Cells (LiPo): 2-6S

• Max Burst Current <10s:55.22A

• Max Power (W) 60s:885.4W

• Internal Resistance (Rm):40.6mΩ

• Motor Wire Length: 150mm / 20AWG

Package included:

• 1pc x MOTOR XING-E Pro 2306  motor
