Description

iFlight XING Eco 2306 SPECIFICATIONS

Wheelbase: Screws

Upgrade Parts/Accessories: Motor

Tool Supplies: Motor

Technical parameters: Value 5

Size: As Show

Remote Control Peripherals/Devices: Motor

Recommend Age: 12+y

RC Parts & Accs: Engines

Quantity: 1 pcs

Origin: Mainland China

Model Number: iFlight XING Eco 2306

Material: Composite Material

Four-wheel Drive Attributes: Motors

For Vehicle Type: Helicopters

Brand Name: uuustore

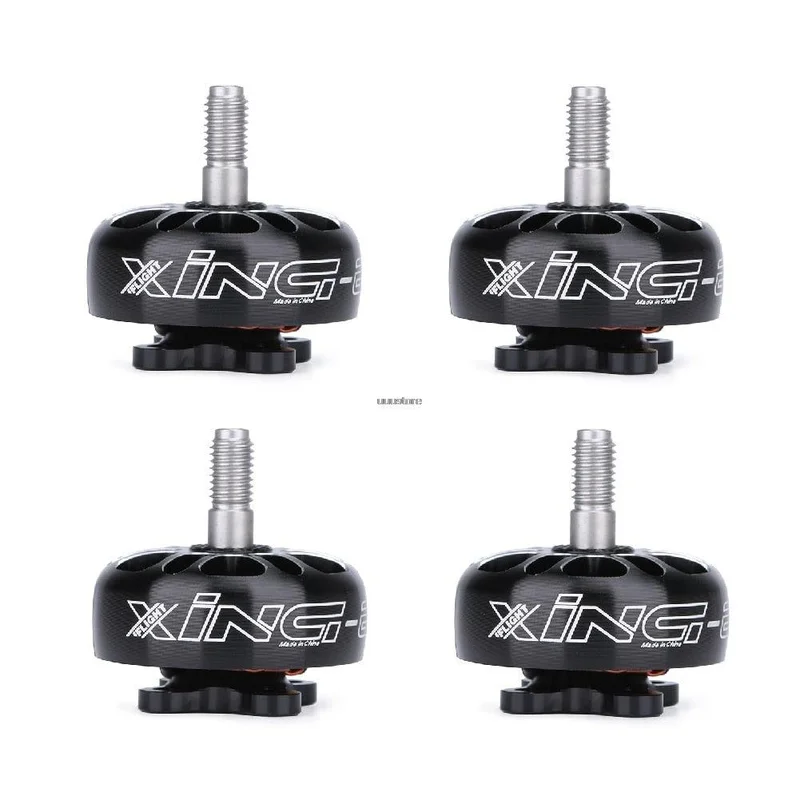

iFlight XING E PRO 2306 1700KV 2450KV 2-6S Brushless Motor 1/ 2/ 4PCS for RC Models Car Multicopter FPV DIY Racing Parts Accs

Package included:

• 1/2/4pcs x MOTOR XING-E 2306 Pro motor

：

• XING-E series are very strong and powerful FPV motors for FPV racing. great value choice with well known XING performance.focuses on quality. the XING-E series affordable motors that are strong and durable.

• This 2306 sized motor features a high-strength 4mm steel hollow shaft. Single strand windings for performance. M3 shaft screw. and larger 9x4x4mm NSK bearings.

Features:

• High-strength 4mm Steel shaft

• N52SH High-temperature magnets. NSK bearings

• 16x16mm hole pattern

• Single strand copper winding

• 6061 CNC machined aluminum top and base parts

• Hex bolt shaft set screw

Specifications:

• Configuration: 12N14P

• Stator Diameter:24mm

• Magnets: N52SH Curved

• Bearing Size: 9x4x4

• Shaft Diameter: 4mm / Steel

• Base Mounting Pattern: 16x16mm M3 Thread

• Motor Dimension:29.5×18.7mm

• Weight:33.1g (150mm wires)

• Idle Current @12.6v (Io):2.1A

• Cells (LiPo): 2-6S

• Max Burst Current <10s:55.22A

• Max Power (W) 60s:885.4W

• Internal Resistance (Rm):40.6mΩ

• Motor Wire Length: 150mm / 20AWG
