IFlight TITAN DC7 HD Frame – MyFPV

Description

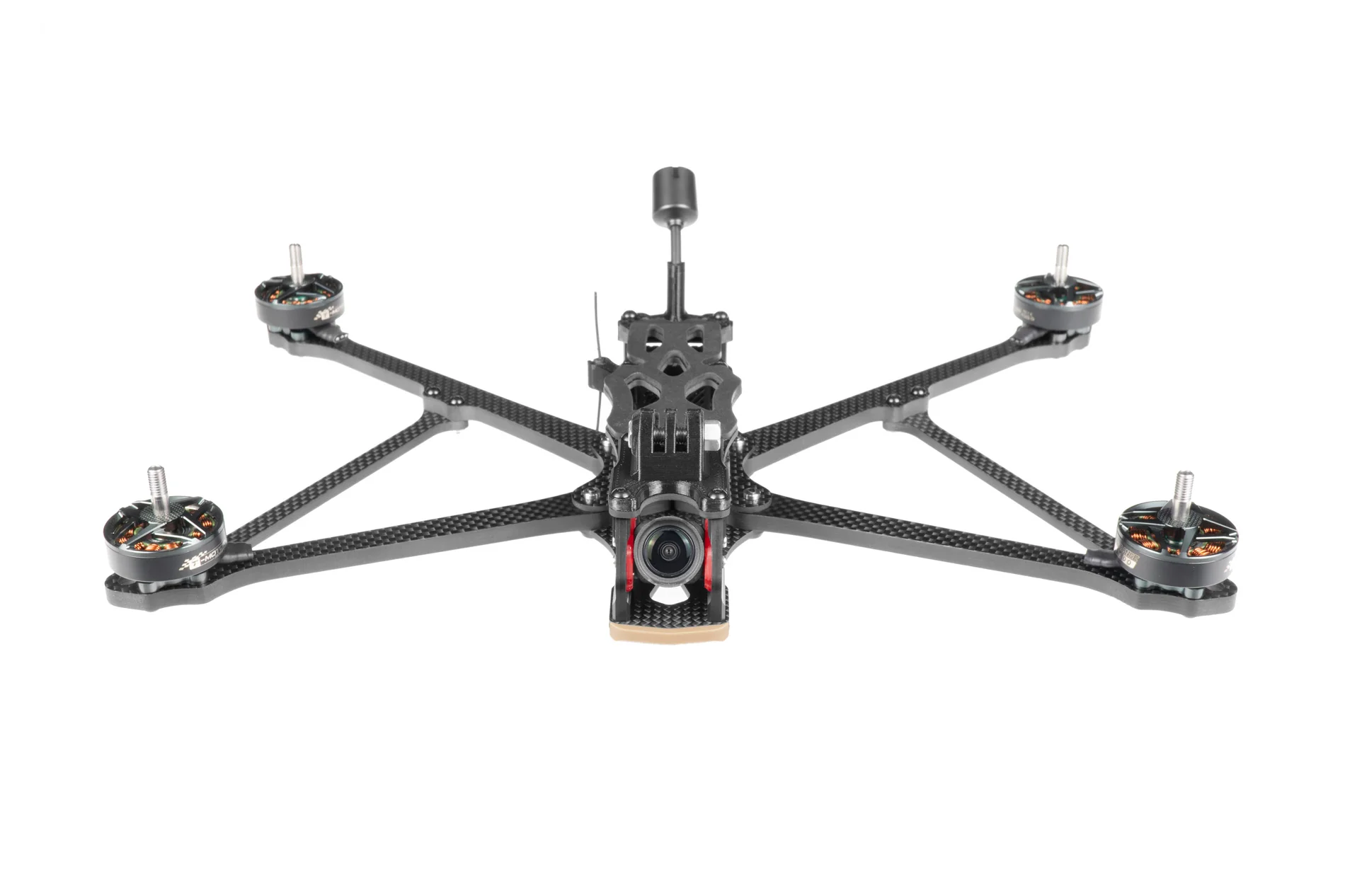

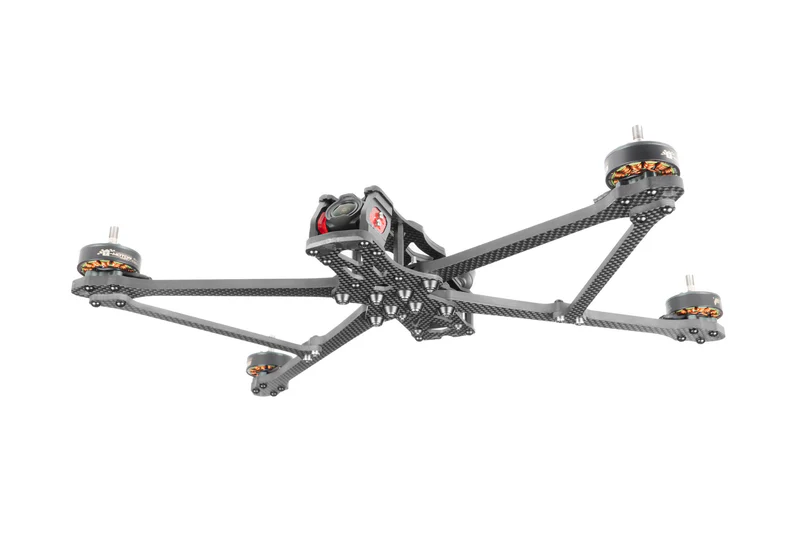

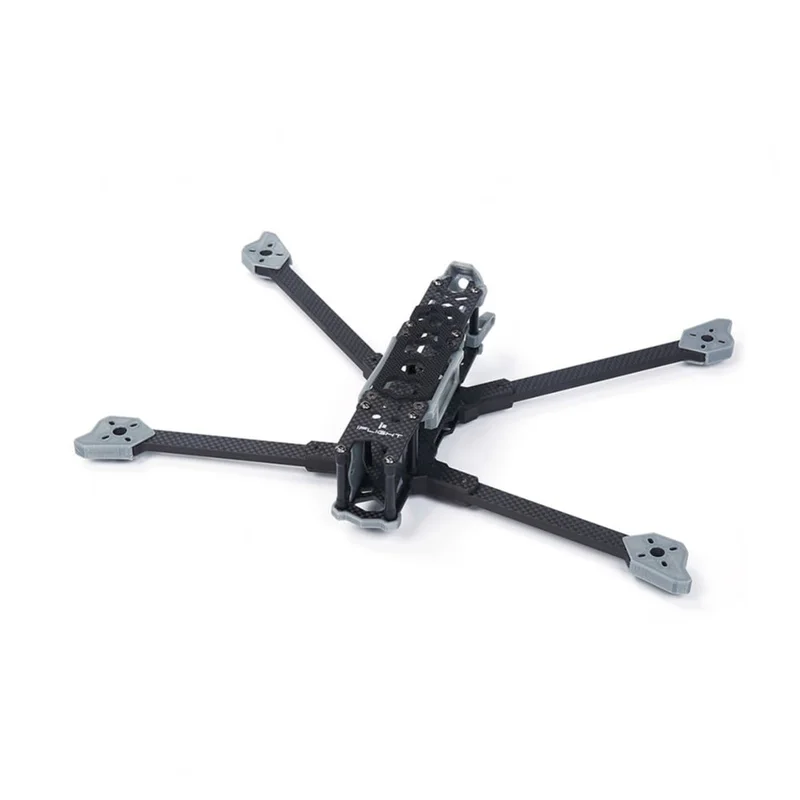

iFlight TITAN DC7 HD Frame

The TITAN DC7 HD Frame perfect fits the amazing new DJI FPV system with boomerang arms, this quad makes flying FPV truly breathtaking. A 7″ frame for larger builds with DJI!

Features:

• Popular Deadcat style configuration, No prop in View
• Optimized weight distribution: DJI unit and Stack are centered
• Fits both 30.5x and 20x stacks
• Full 3K Carbon Fiber airframe with chamfered boomerang arm
• 333mm wheelbase, weight: 208.8g dry with TPU parts

Specifications:

• Weight: 208.8 (with TPU parts, and battery anti-slip pads)
• Wheelbase: 333mm
• Main body dimension: 330*223mm
• Bottom to top distance: 35mm
• Arm thickness: 6mm
• Bottom plate thickness: 3mm
• Top plate thickness: 2.5mm
• Camera plate thickness: 1.5mm( 2.5mm included TPU inserts)
• Mounting Holes: 30.5*30.5mm / 20*20mm
• Support camera size: 19*19mm 22*22mm Recommended motors: 22xx, 23xx

Package includes:

• 1 x TITAN DC7 HD Frame
• 1 x Screw Bag
• 1 x TPU Camera mount adapters
• 4 x Arm guard/Motor mount
• 1 x TPU DJI Air Unit Bracket Mount
• 1 x TPU DJI Air Unit Antenna Mount
• 1 x TPU bottom plate front protective mount
• 1 x TPU bottom plate rear protective mount
• 1 x Battery Anti-slip Mat
• 2 x Battery Straps

NOTE: Frame with TPU parts only. The DJI air unit, antenna, propellers, motors, and flight stacks are not included.
